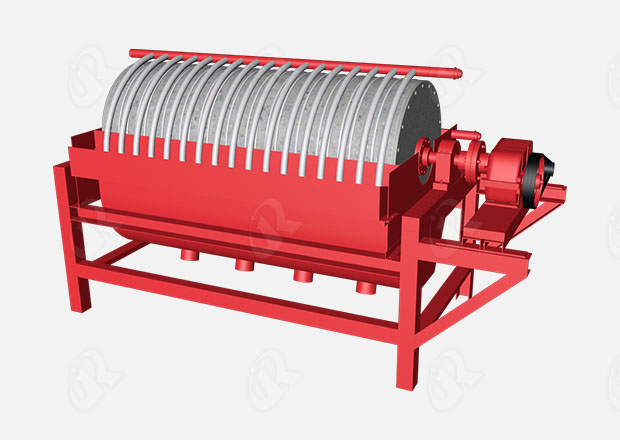

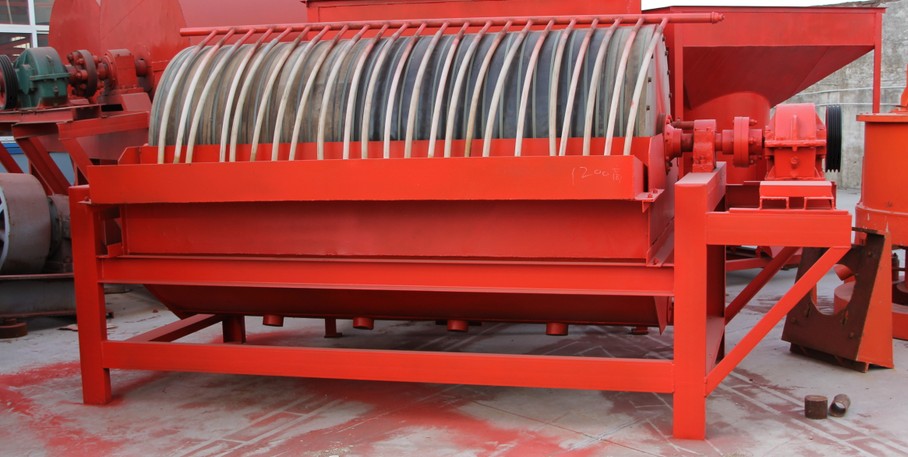

Wet Magnetic Separator

Wet Magnetic Separator's magnetic system, use high-quality ferrite material or composite with rare earth magnets, the barrel table average magnetic induction is 250 - 600mT. Henan Kolev supply downstream magnetic separator with different tables strength. This product has the advantages of simple structure, large capacity, easy to operate, easy to maintain.

Capacity
24T/D-250T/D
Power
0.55-5.5KW
Feeding size
0-3mm

WhatsApp/Wechat: +86 166-3801-7614

Get Quote

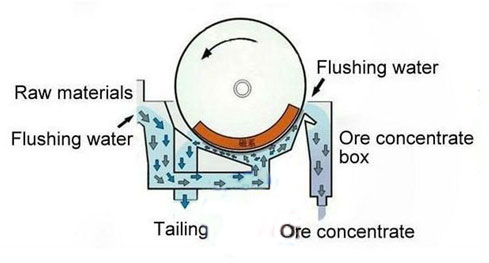

Wet magnetic separator is widely used in beneficiation plant, coal washing and chemical departments for wet sorting particle size 6-0 mm strong magnetic minerals, and the mineral is divided into two products of the magnetic material and non-magnetic material. Strong magnetic minerals selected by it magnetic susceptibility should not be less than 3000 * 106 cm3 / g, belonging to such minerals are magnetite, pyrrhotite,etc. Hematite, limonite, Ling iron, should be selected for magnetization roasting in order to carry out the sorting.Same cylinder can be equipped with three tanks, that is half-countercurrent tank, countercurrent tank, downstream groove to adapt different sorting process.

Half-countercurrent tank is suitable for wet-type roughing flotation and selection of strong magnetic minerals with 0.5-0 mm ore particle size, especially for featured minerals with 0.15 - 0 mm particle size.Countercurrent tank is suitable for wet-type roughing flotation and scavenging of strong magnetic minerals with 0.6-0 mm ore particle size, especially for coal washery heavy media recovery,etc. Downstream slot is suitable for ore particle size 6 - 0 mm roughing and sorting. Half-countercurrent tank and the downstream slot can be used in tandem to improve the concentrate grade. The magnetic system is made of high quality ferrite materials or composite with rare earth magnets, drum table the average magnetic induction is 100 - 600mT. According to user needs, providing downstream, half-countercurrent, counterflow, different table magnetic separator. Our factory products have the advantages of simple structure, large capacity, easy to operate, easy to maintain.

Model	Drum diameter(mm)	Barrel length (mm)	Barrel table field(kA/m)	Throughput(t/h)	Feeding size (mm)	Power(KW)	Weight(t)
KL406	400	600	80~450	2~4	2~0	0.55	0.4
KL603	600	300	80~400	2~4	2~0	0.55	0.4
KL606	600	600	80~400	5~10	2~0	1.1	0.95
KL609	600	900	80~400	8~15	2~0	1.5	1.3
KL612	600	1200	80~400	10~20	2~0	1.5	1.5
KL618	600	1800	80~400	15~30	2~0	1.5	1.8
KL712	750	1200	120~400	12~25	2~0	1.5	2.0
KL718	750	1800	120~400	30~45	2~0	3.0	2.2
KL724	750	2400	120~400	30~65	2~0	3.0	2.5
KL918	900	1800	130~400	35~60	3~0	4.0	2.8
KL924	900	2400	130~400	70-110	3~0	4.0	3.5
KL1018	1050	1800	130~400	40-75	3~0	4.5	3.5
KL1021	1050	2100	130~400	50-80	3~0	5.5	3.5

The magnetic system all adopts NdFeB magnets with high magnetic energy product and high coercive force, with high magnetic field strength and large action depth
