  • Capacity: 8-176t/d
  • Output size: 50-600mesh
Online Chat

Applicable Material

Reliable operation, high efficiency, strong adaptability, continuous production

The Raymond mill is a new generation machine developed and improved by our company on the basis of traditional Raymond grinding, learning from domestic and foreign advanced technologies. The whole grinding system is composed of crusher, bucket elevator, storage silo, screw feed scale, grinding mill, separator, pulse dust collector, fan and electric control system, etc. It is mainly used for grinding more than 600 kinds of materials below Morh's grade 7. Widely used in metallurgy, building materials, chemistry, mining and other fields of mineral products grinding processing, fineness of finished products can be adjusted in the range of 40-400 mesh to meet the requirements of different users.

Product Features

01

High grinding efficiency and convenient fineness adjustment

It has the advantages of continuous production, large production capacity, high grinding efficiency, vertical cage separator head, uniform fineness of finished products, easy to adjust fineness and small energy loss.

02

Strong adaptability

Strong adaptability to materials, it can grind a variety of stones with Mohs hardness below 7 grade non-metallic ores.

03

Green environment protection

Pulse dust collection system, strong dust cleaning effect, all the positive pressure parts of the main engine are sealed, basically realize free dust processing workshop.

04

Fewer transmission parts, low maintenance costs

The equipment has compact structure, less transmission parts, low maintenance cost, stable operation and easy installation.

Working Principle

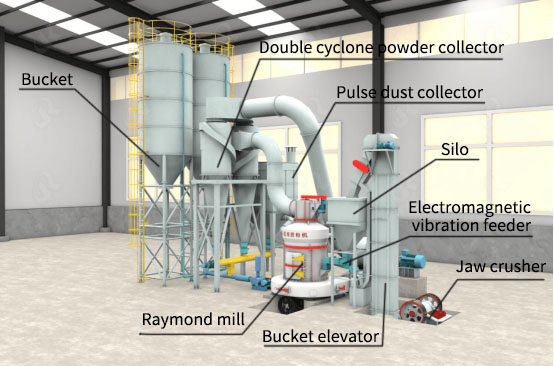

Raymond mill is divided into three series grinding machine more than a dozen models, including high pressure micro grinding machine, high pressure roller grinding mill, ordinary Ramond mill. The whole structure of Raymond mill is composed of main engine, analyzer, pipeline device, blower, cyclone powder collector, jaw crusher, bucket elevator, electromagnetic vibration feeder, electric control motor and so on. The main machine of Raymond mill is composed of frame, air inlet volute, shovel blade, grinding roller, grinding ring, housing and motor. During the operation of the Ramond mill, the grinding roller rolls tightly on the grinding ring under the action of centrifugal force, and the material is sent between the grinding roller and the grinding ring by the spatula. The material is broken into powder under the action of grinding pressure, and then the grinding material is blown up under the action of the fan and passes through the analyzer. The material that meets the finness requirement passes through the analyzer, and the material that fails to meet the requirement goes back to the grinding chamber for further grinding. The material is separated and collected by the cyclone powder collector
Working Principle Img

Technical Parameter

model KL500 KL650 KL780 KL980 KL1100 KL1450 KL1760 KL1950 KL2100
Capacity (t/h) 0.5-2 0.5-2.5 1-3 1.5-4 2-6 6-10 8-20 15-30 20-40
main motor power(kw) 7.5 15 18.5 30 45 90 132 185 220
Fan power(kw) 5.5 11 15 22 37 90 132 185 220
Analyzer power(kw) 1.1 1.1 2.2 2.2 5.5 7.5 22 37 45
rotate speed(r/m) 120 120 120 120 120 90 90 90 90
Diameter of grinding ring(mm) 500 650 780 980 1100 1450 1760 1950 2100
Diameter of grinding roller(mm) 150 180 260 300 320 400 450 570 630
Maximum feed(mm) 15 15 15 20 25 30 30 40 40
Final size(mm) 1.6 ------ 0.045 1.6-0.023
weight(t) 1.8 2.8 3.8 6.5 14.5 26 48 65 85
