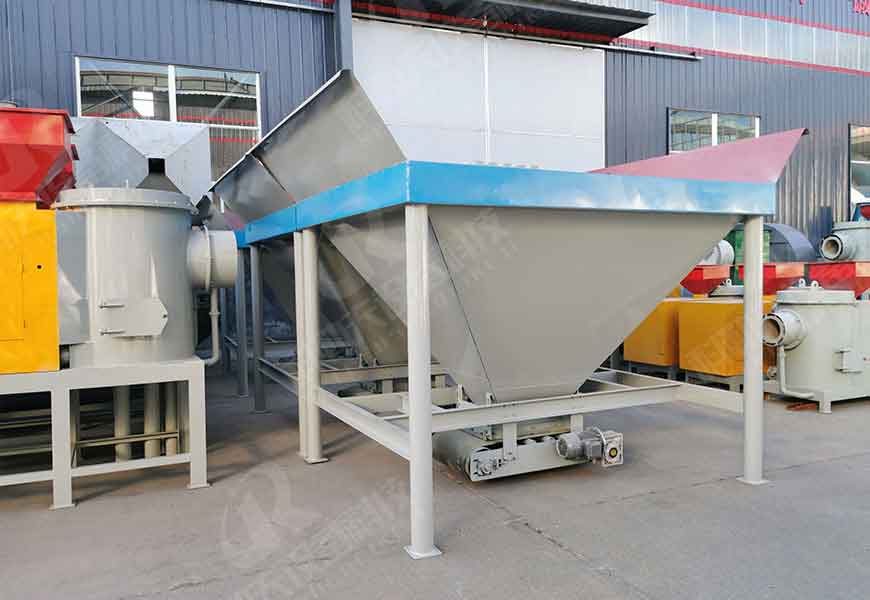

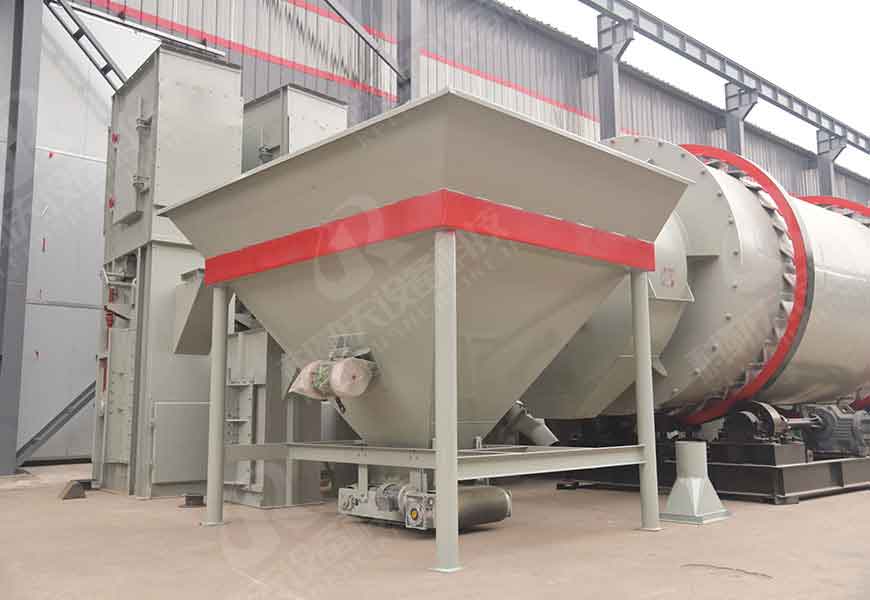

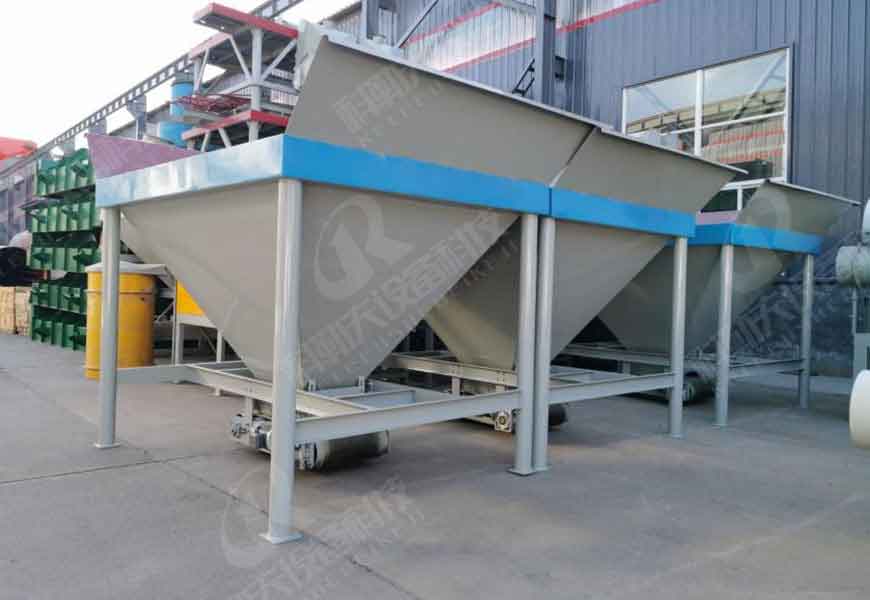

Belt feeder

  • Applicable materials: Suitable for ore, pulverized coal, cement, clinker, limestone, clay and other powder, granular or small block materials.
Online Chat

Applicable Material

Frequency conversion speed regulation, anti bonding, plugging, feed flexible.

The main function of the feeder is to provide material supply to other equipment, the use of the feeder can make the material evenly into a device so that the next process can work normally, save labor, and protect the performance of the equipment, extend the service life of the entire production line equipment. The feeder is an indispensable supporting product of mineral processing equipment. Suitable for feeding materials are ore, pulverized coal, cement, clinker, limestone, clay and other powder, granular or small block materials. The feeder and the belt conveyor are driven by a set of driving device, and the electromagnetic clutch of the driving device has the function of opening, stopping and functional conversion of the feeder. The belt speed of the measuring belt conveyor is less than 1m/s. In order to measure the belt speed, a speed detection device is set, and in order to prevent the deflection of the weighing roll, a detection rod is set for adjustment.

Belt feeder

Product Features

01

Frequency control, high efficiency

On the basis of the traditional feeder, combined with the belt conveyor independent improvement and innovation, the use of frequency conversion motor, can control the speed of the belt at any time, large bearing capacity, high transmission efficiency.

02

Anti bonding, no plugging

Vibration motor installed on the side can effectively prevent the material from sticking to the wall.

03

The feed is flexible and uniform

The outlet is provided with a movable baffle, flexible control of feeding amount, uniform feeding, good continuous performance, vibration force can be adjusted.

04

Wear resistant and durable, easy maintenance

Simple structure, reliable operation, light weight, small size, reliable work, long life, easy maintenance.

Working Principle

When working, the motor drives the feeder to work through the reducer. When running, the material in the bin moves with the belt, and moves to the side of the discharge port, and the material is discharged through the gate or scraper. The size of the discharge of the feeder can be adjusted by the scraper device or the gate.
Working Principle Img

Technical Parameter

Model Belt width (mm) Head and tail wheel or drum wheel center distance(mm) Fore and aft wheel diameter (mm) Feeding capacity (t/h) Feed size (mm) motor type motor power (kW) weight(kg)
500X1000 500 1000 219 10~100 0~50 YCT112- 4B 0.75 266
500X1300 1300 10~100 0~50 YCT160 -4A 2.2 503
500X1500 1500 10~100 0~50 Y2.2-1.0-50-32 2.2 552.7
500X2000 2000 10~100 0~50 Y2.2-1.0-50-32 2.2 609.4
500X2800 2800 10~100 0~50 YCT160- 4A 2.2 670
500X3000 3000 10~100 0~50 YCT160 -4A 2.2 697
500 X4000 4000 10~100 0~50 YCT160- 4A 2.2 736
650X1500 650 1500 10~100 0~50 YCT160- 4A 2.2 610
650X2600 2600 10~100 0~50 YCT160- 4A 2.2 636
650X4000 4000 10~100 0~50 YCT160- 4A 2.2 893
800 X2000 800 2000 15~150 0~80 YCT160- 4A 2.2 721
800 X3000 3000 15~150 0~80 YCT200- 4B 7.5 857.3
800 X4000 4000 15~150 0~80 YCT200- 4B 7.5 1012
800X4500 4500 400 15~150 0~80 YCT160- 4A 2.2 1200
1000 X2000 1000 2000 200~450 0~80 YCT160- 4B 3 1549
1000 X2500 2500 200~450 0 ~100 YCT160- 4B 3 2105
1000 X6000 6000 200~450 0 ~100 YCT225- 4A 11 5214
