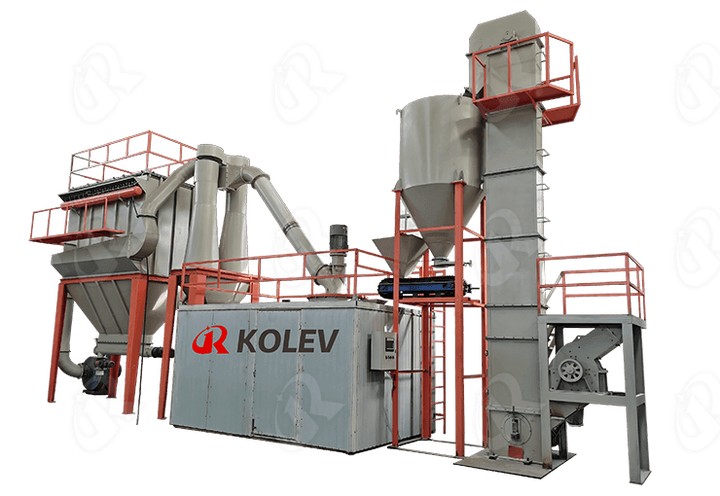

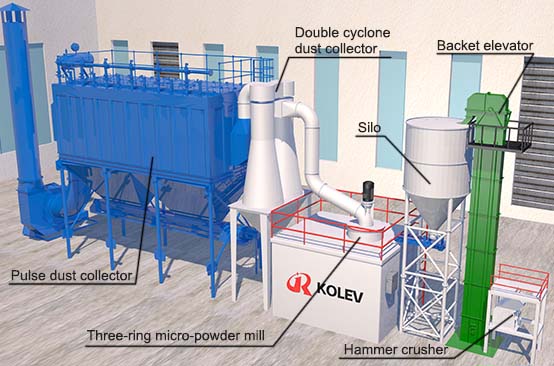

Micro Powder mill is mainly composed of the main grinding machine, the blower, Analyzer, double cyclone powder collector, pulse dust collector, the silencer house, bucket elevator, the storage silo, the connecting pipe and so on.
on the condition of same fineness, it has less input, lower cost and shorter recovery cycle than air grinding mill.
In the case of the same fineness of materials and finished products, the service life of wear parts is longer than that of ordinary grinding mill equipment, generally up to more than 1 year.
The crushing and grading of materials to finished products are carried out in a closed system. The dust-containing gas is treated by dust removal, and there is no pollution. It is an ideal equipment for green environmental protection.
There are no rolling bearings or screws in the grinding chamber. There is no problem of bearings and their seals being easily damaged, or screws being easily loosened which can may damage the machine..
| Model | mean diameter（mm） | Number of loops（ pcs ） | Feed size（mm） | Size range of finished product（mesh） | Finished product output（t/h） | boundary dimension（L*W*H）（mm） | main motor power（KW） | Power of classifier（KW） |
| KLF800 | 800 | 3 | ≤10 | 150-3000 | 0.5-6 | 8605*4139x6050 | 75 | 15 |
| KLF800B | 800 | 3 | ≤10 | 150-3000 | 0.5-6 | 10454*3393*6626 | 75 | 5.5*3 |
| KLF1000 | 1000 | 4 | ≤15 | 150-3000 | 1.2-10.5 | 14507*3633*7562 | 132 | 22 |
| KLF1000B | 1000 | 4 | ≤15 | 150-3000 | 1.2-11.5 | 14362*4200*7562 | 132 | 5.5*3 |
| KLF1250 | 1250 | 4 | ≤20 | 150-2000 | 2.5-20.5 | 19261*4406*8591 | 185 | 37 |
| KLF1250B | 1250 | 4 | ≤20 | 150-3000 | 2.5-20 | 25067*5414*9007 | 185 | 5.5*4 |
| The device parameters are based on actual devices | Only main engine and dust collector system|Other options | |||||||
