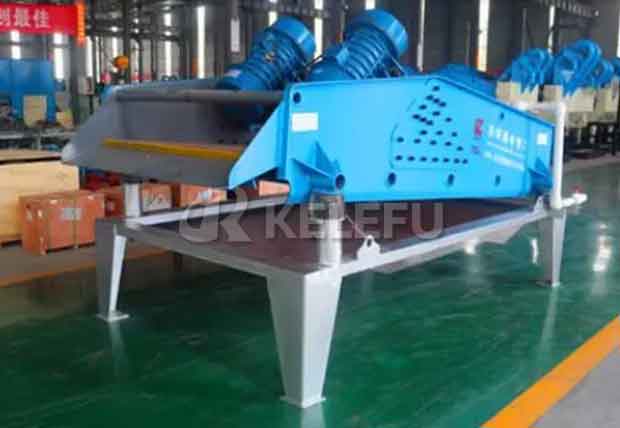

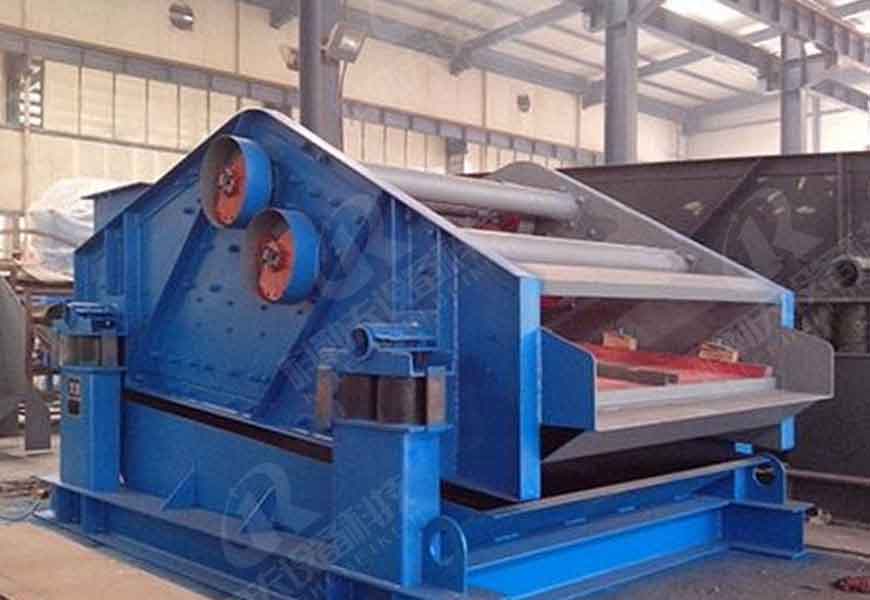

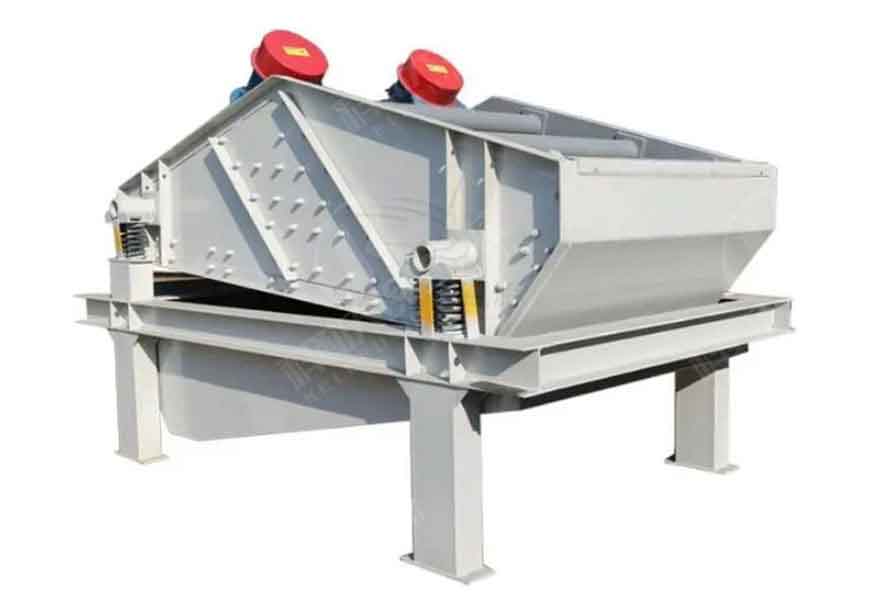

Dewatering screen

  • Capacity: 10-200t/h
  • Feed size: ≤10mm
  • Applicable materials: Tailings dry discharge, fine sand recovery, washed sand, coal slime dehydration, soil remediation, sewage treatment, etc.
Online Chat

Applicable Material

Large processing capacity, wear-resistant and durable, continuous operation

Dewatering screen is also called dewatering vibrating screen. Materials with high water content coming out of the sand washing machine or filter press (such as filtration and concentrator) are directly discharged to the back end of the dewatering screen. the dewatering screen continues to vibrate, the moisture and very fine dust in the material will be filtered out from the bottom of the polyurethane sieve plate, push the dewatered material to the front end screen mouth discharge. It is widely used in coal slime recovery, filter coarse, filter coarse machine other materials dewatering, recovery process conditions, can be adjusted according to the actual needs of the amplitude, angle and the use of single or double layer sieve plate.

Dewatering screen

Product Features

01

Good wear resistance and impact resistance

Adopt high quality sieve plate, impact resistance, wear resistance.

02

Convenient maintenance and replacement

Easy replacement of vibrating motor.

03

High quality profile manufacturing

The body adopts thickened profile with high strength.

04

Good shock absorption effect

The rubber spring is used for good shock absorption effect.

Working Principle

The dewatering screen adopts dual motor self-synchronization technology, universal eccentric block, adjustable amplitude vibrator, which is mainly composed of screen box, shock absorber, support system and motor. The material is fed evenly into the screen inlet by the feed box (or hydrocyclone). Remove about 1/3 of the water at the pre-dewatering screen plate installation at a horizontal 45°. After entering the junction of the flat sieve plate and the oblique sieve plate, the material accumulates. Material particles settle by gravity and begin to form a thin filter layer. The filter layer also prevents other particles from passing through the screen, making the filter layer gradually thicken. Water that fails to pass through the screen forms a pool in the upper part of the filter layer. Because the filter layer here is thin, the water is gradually removed under intense movement. The vibration state of high-frequency amplitude makes the particles forming a filter layer such as tailings become denser and denser, vibrating to the discharge port.
Working Principle Img

Technical Parameter

Model Sieve plate specification(mm) Feed size(mm) Processing power(t/h)Motor power(KW)
0820800x2000≤1010-252x0.75
10201000x2000≤1015-402x1.52
12301200x3000≤1020-502x2.4
15301500x3000≤1030-702x3
18301800x3600≤1060-1202x3.7
24372400x3700≤10120-2202x5.5
