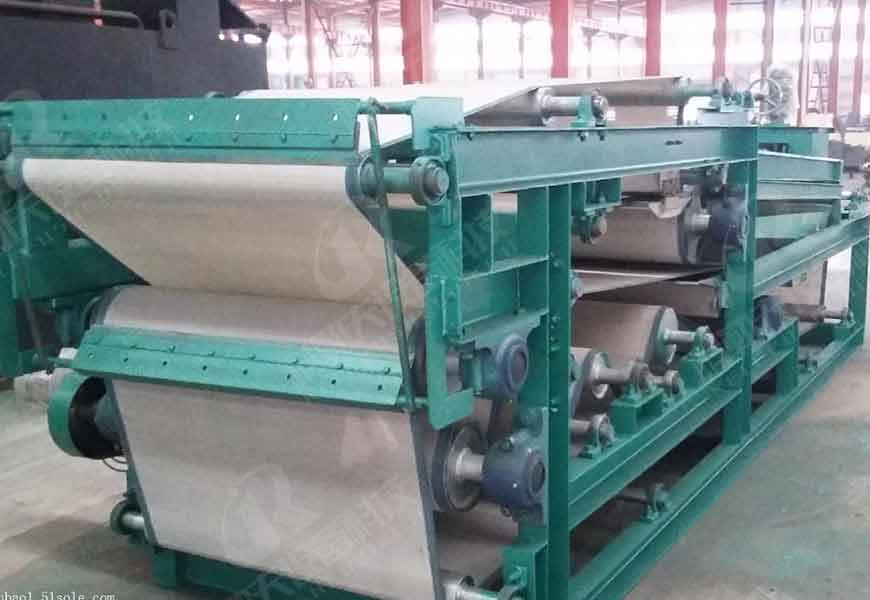

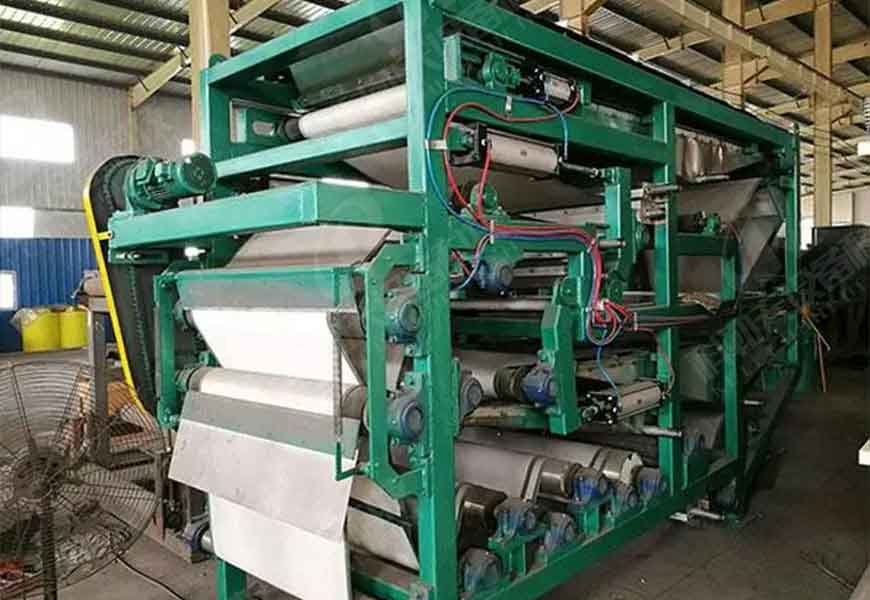

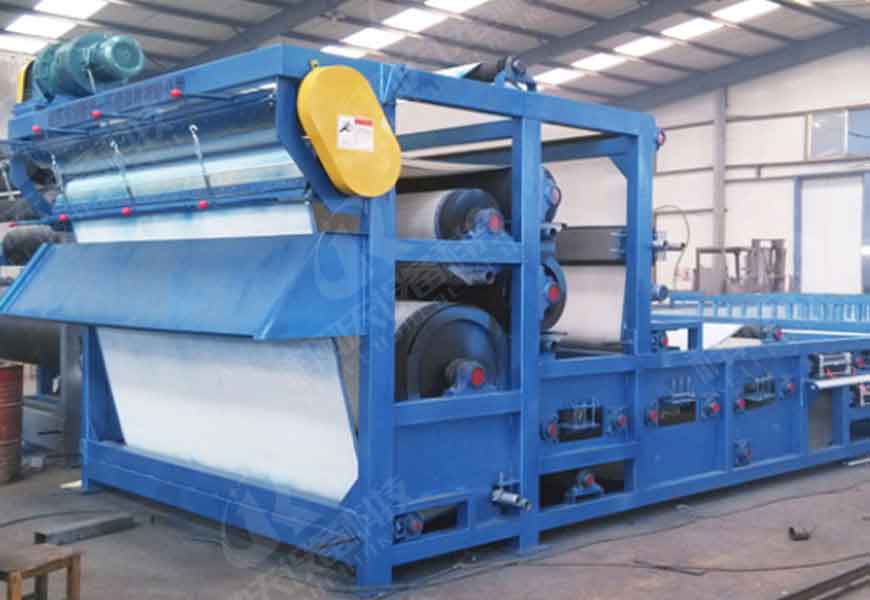

Belt filter press is a new model developed successfully by Kolev on the basis of the introduction of foreign advanced filter technology. The device works by two filter belts around rollers which are a series of sequential arrangement and varying sizes. It is a press filter equipment using the extrusion and shearing between filter belts to dewatering from sewage.It has the advantages of continuous operation, high degree of automation, energy saving, easy to use and maintain etc. It is an ideal equipment for sludge dewatering and reducing treatment.
Triple super long dewatering area design, high dewatering efficiency, good treatment effect.
High degree of automation, simple operation, easy to control.
Belt filter press can be 24 hours continuous uninterrupted operation, high processing efficiency.
Low power consumption, less energy consumption, can save operating costs.
| Model | Belt width(mm) | Main engine power （Kw） | Flush net water pressure （Hpa） | Compressed air consumption （㎡/min） | Compressed air pressure （bar） | Overall dimension： length* width* height（mm） | Moisture content of feeding% | Moisture content of slag% | Feed handling capacity T/D |
| DYLT1000 | 1000 | 2.2 | ≥0.5 | 0.2 | 4.0 | 5180*1640*2280 | 76~90% | 50~70 | 30~40 |
| DYLT1500 | 1500 | 3.0 | ≥0.5 | 0.3 | 4.0 | 5180*2240*2280 | 76~90% | 50~70 | 40~50 |
| DYLT2000 | 2000 | 4.0 | ≥0.5 | 0.3 | 4.0 | 5180*2640*2280 | 76~90% | 50~70 | 50~70 |
| DYLT2500 | 2500 | 5.5 | ≥0.5 | 0.3 | 4.0 | 5180*3140*2280 | 76~90% | 50~70 | 70~90 |
| DYLT3000 | 3000 | 7.5 | ≥0.5 | 0.3 | 4.0 | 5180*3640*2280 | 76~90% | 50~70 | 90~120 |
