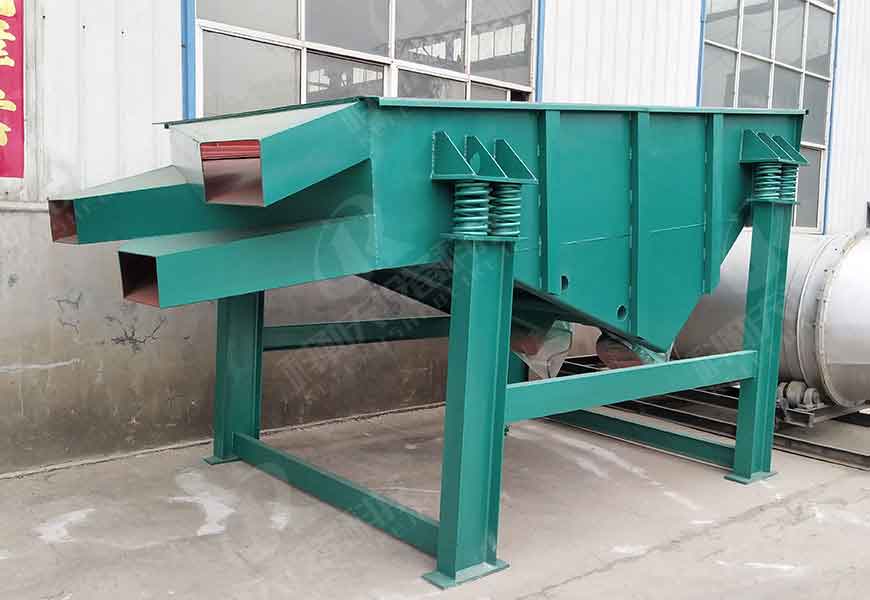

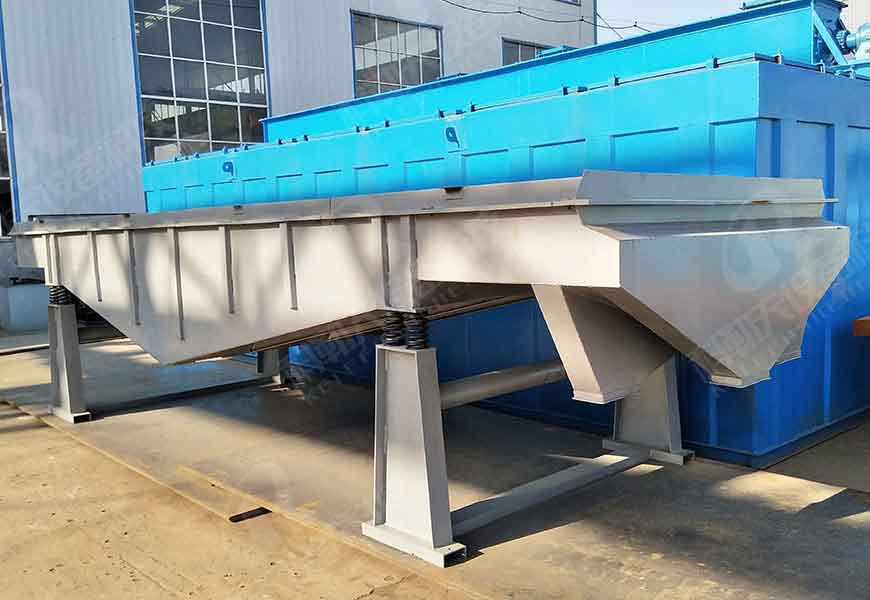

Linear vibrating screen Linear vibrating screen Linear vibrating screen
Linear vibrating screen Linear vibrating screen Linear vibrating screen

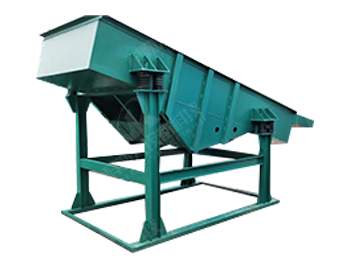

Linear vibrating screen

  • Capacity: 0.12-20t/h
  • Feed size: 0.074—5mm
  • Applicable materials: Used in abrasive, chemical, food, food, plastics, medicine, fertilizer, building materials and other industries.
Online Chat

Applicable Material

Precise classification, large handling capacity, good sealing

Linear Vibrating Screen is mainly composed of screen box, screen frame, screen mesh, vibration motor, motor pedestal, damper spring, support and so on. Product vibrator service life > 60,000 hours, high vibration intensity (9-12mm), to ensure 24 hours of stable and continuous work.

Linear vibrating screen

Product Features

01

Good screening effect and large processing capacity

Suitable for particle screening, classification, impurity removal, filtration, large processing capacity.

02

Simple structure and good sealing

Simple structure, tight seal, low noise, easy maintenance, low energy consumption.

03

Strong applicability and wide range

Power layout can be adjusted according to customer needs, to adapt to the corresponding production conditions. It is mainly used in mining, metallurgy, abrasives, ceramics, coatings, food, starch, mining.

04

High quality material selection and long service life

All parts of the screen body are welded with rolled steel plates and profiles, and the screen has a long service life.

Working Principle

Linear vibrating screen is the use of vibration motor excitation as the vibration source, so that the material is thrown up on the screen.At the same time for linear motion forward, the material from the feeder evenly into the screen machine feed port.Through the multi-layer screen to produce several specifications of on the screen material, under the screen material, which is respectively from the respective outlet discharge. With low energy consumption, high capacity, simple structure, easy maintenance, fully closed structure, no dust scattled, automatic discharge, more suitable for assembly line operation. When the vibrating screen works, the two motor synchronous reverse rotation of the vibrator generated reverse vibration force, forcing the screen body to drive the screen to do longitudinal motion, so that the material on the vibration force and periodic forward throw a range, so as to complete the material screening operation.
Working Principle Img

Technical Parameter

Model Size of screen surface
(mm)
Number of screen layers Mesh size   Capacity(t/h) Vibrating frequency  Double-amplitude
(mm)
Motor power(kw) Vibration direction Angle Overall dimension
( length× width× height)
mm
DZSF515 500×1500 1-5 2-200 0.12-20 960 6-8 2×0.37 45-60 2140×808×848
DZSF520 500×2000 1-5 2-200 0.12-20 960 6-8 2×0.37 45-60 2140×808×848
DZSF525 500×2500 1-5 2-200 0.12-20 960 6-8 2×0.55 45-60 2750×808×938
DZSF1020 100×2000 1-5 2-200 0.11-20 960 6-8 2×0.55 45-60 2219×1320×960
DZSF1025 1000×2500 1-5 2-200 0.18-15 960 6-8 2×0.75 45-60 2269×1320×960
DZSF1030 1000×2500 1-5 2-200 0.1-20 960 6-8 2×1.1 45-60 3219×1340×1120
