Sand drying line

  • Capacity: 5-80t/h
  • Applicable materials: Suitable for sand drying, such as mineral sand, quartz sand, river sand, yellow sand, sea sand, garnet sand, machine sand, dry powder mortar, mountain sand, weathered sand, etc
Online Chat

Applicable Material

Reliable operation, large production, high efficiency, low overall energy consumption, combined three return structure.

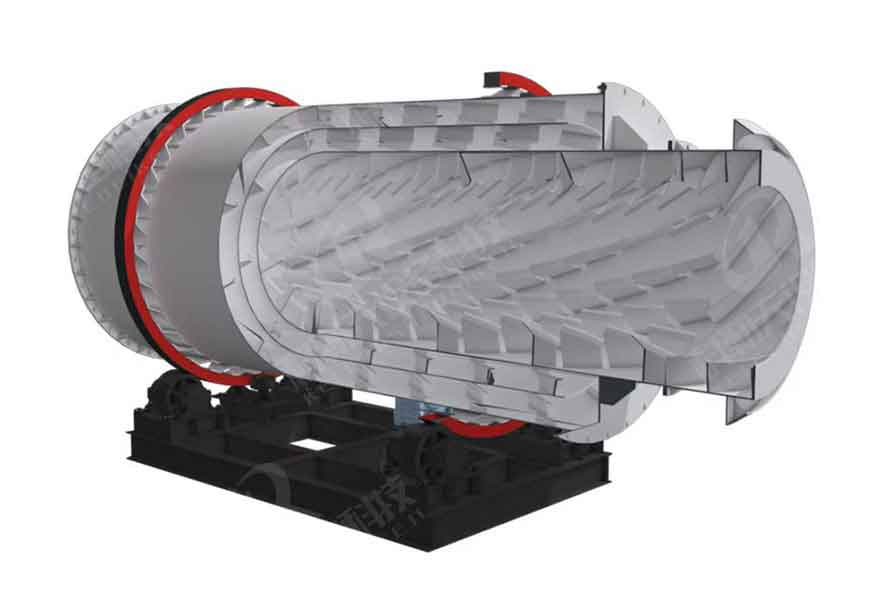

Sand dryer is a new type of drying equipment developed by our company. It has the characteristics of reliable operation, large production, high working efficiency and low energy consumption. In the case of sand initial moisture 30%, the final moisture can be dried below 1%. On the basis of saving production costs and improving economic benefits, it can greatly meet the needs of large sand manufacturers.

Sand drying line

Product Features

01

Exquisite and durable

Good appearance quality and wear resistance.

02

High thermal efficiency of self-insulation

Reasonable process layout, mature technology, high thermal efficiency.

03

Land saving, low energy consumption

Save land area, reduce civil construction investment about 50%, low operation cost.

04

Single motor drive, easy maintenance

New transmission system, running more smoothly.

Working Principle

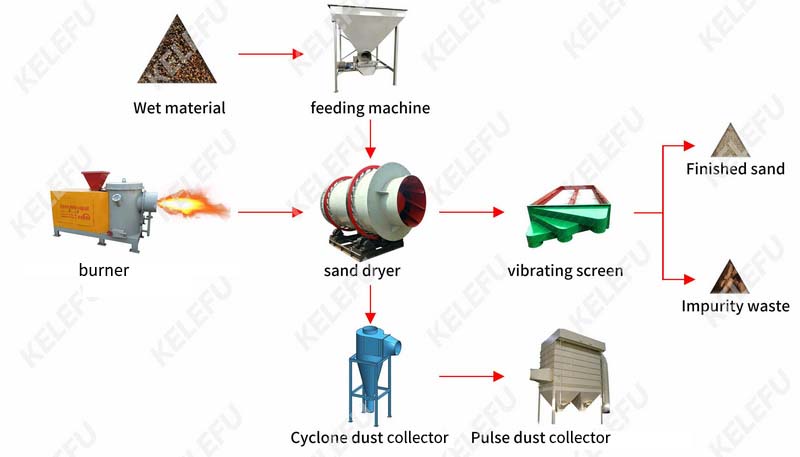

Sand is evenly sent to the belt conveyor first through the disk feeder, and then through the quicksand pipe into the dryer, the heat generated by the combustion of fuel in the hot stove under the action of the extraction fan into the main engine and to contact with sand inside to complete the transfer of heat to reach rapid evaporation of moisture. The sand dryer produced by our company is with three return sealing structure, which can reduce heat loss and improve thermal efficiency. The dried sand is transported to the linear vibrating screen for screening, and then it is sent to the storage silo by the elevator for storage or packing. The upper part of the hopper is the dust removal system, after that, it can achieve the purpose of environmental protection.
Working Principle Img

Technical Parameter

Product specificity technical parameters depends on the usage. Please contact customer service for details +86 166-3801-7614
