Such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.
There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.

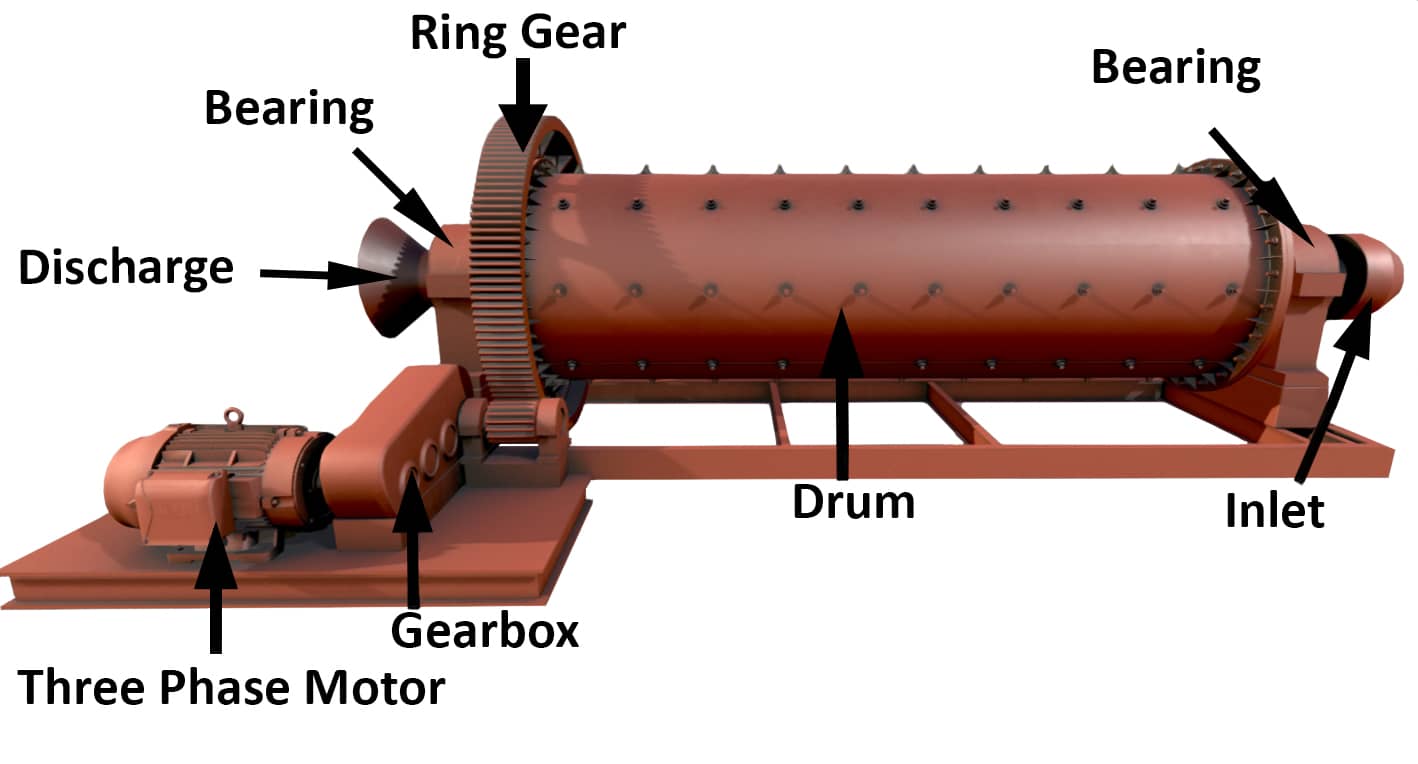

Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.
Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.
The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.
| Specification(m)D×L | Rotary speed(r/min) | Feeding sie(mm) | Capacity | Ball loading | Main motor | Power(kw) | Motor speed(r.p.m) | Main reducer | Reducing ratio | Weight |
| Φ2.2×11 | 22.2 | ≤25 | 15～17 | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 83 |
| Φ2.4×8 | 20.91 | ≤25 | 14～18 | 39.5-42 | JR1512-8 | 570 | 740 | ZD80 | 5 | 76.4 |
| Φ2.4×9 | 20.91 | ≤25 | 23~25 C | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 81 |
| Φ2.4×10 | 20.91 | ≤25 | O 16~18 | 50 | TR1512-8 | 630 | 740 | ZD80 | 5 | 92.4 |
| Φ2.4×11 | 21 | ≤25 | O 17~19 C 20~22 | 60~62 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 105 |
| Φ2.4×12 | 21 | ≤25 | O 18~20 C 22~24 | 63~65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 110 |
| Φ2.4×13 | 21 | ≤25 | O 21~22 C 24~26 | 66~68 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 117 |
| Φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 133 |
| Φ2.6×11 | 20.6 | ≤25 | 21~28 | 69 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| Φ2.6×13 | 20.6 | ≤25 | 28~31 | 80 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 151 |
| Φ3.0×9 | 19.3 | ≤25 | 35~40(C) | 80~83 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 137 |
| Φ3×11 | 18.92 | ≤25 | 44~47(C) | 95~100 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 159 |
| Φ3×12 | 18.92 | ≤25 | 48~52(C) | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 164 |
| Φ3×13 | 18.92 | ≤25 | 39~45(C) | 110~116 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 183 |
| Φ3.2×11 | 18.3 | ≤25 | 45~48(C) | 110~112 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 195.5 |
| Φ3.2×13 | 18.7 | ≤25 | 45~50(O) | 125 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 213 |
| Φ3.4×11 | 18 | ≤25 | 45~55(C) | 115 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 201 |
| Φ3.5×13 Central drive | 17 | ≤25 | 50~55 | 150 | YR2000-8/1730 | 2000 | 740 | JS130-A-F1 | 223 | |
| Φ3.5×13 Edge drive | 17.5 | ≤25 | 50~60 | 150 | YR2000-8/1730 | 2000 | 740 | JDX1000 | 6.3 | 240.5 |
| Φ3.8×13 Bearing | 16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 240 | |
| Φ3.8×13 Sliding shoe | 16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 220 | |
| Φ4×13 | 16.3 | ≤25 | 78~80 | 191 | YRKK900 | 2800 | 745 | JS140-A | 220 | |
| Φ4.2×11 Bearing | 15.6 | ≤25 | 120~140 | 190 | YR2800-8/1730 | 2800 | 740 | JS140-A-F1D | 245 | |
| Φ4.2×13 Bearing | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3350 | 740 | JS150-A | 260 | |
| Φ4.2×13 Central shoe | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-A | 280 | |
| Φ4.2×13 Sliding shoe | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-B | 260 | |
| Φ4.6×13.5 Welding shoe | 14.5 | ≤25 | 140 | 280 | YRKK1000-6 | 4500 | 995 | 365 | ||
| Φ4.6×14 | 14.5 | ≤25 | 145 | 285 | YR1000-6 | 4500 | 995 | 372 | ||
| Φ5.0×15 | 14 | ≤25 | 160~165 | 350 | YRKK1000-8 | 6000 | 740 | 420 |
