rotary drum screen

  • Capacity: 12-150t/h
  • Feed size: ≤300-400mm
  • Motor power: 0.75-3kw
  • Applicable materials: Sand and stone field, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartz sand, etc
Online Chat

Applicable Material

The screening effect is good, the screen is not easy to plug, and the running stability is good

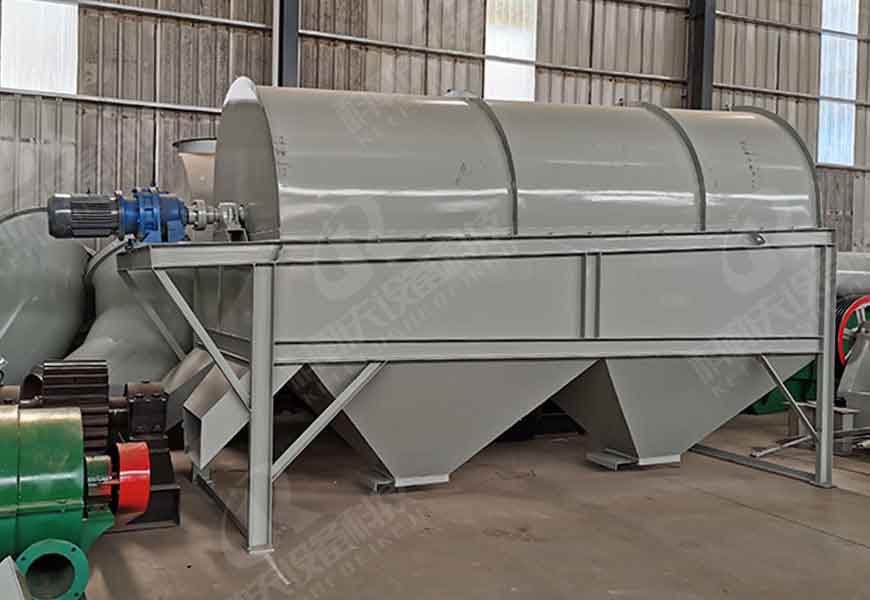

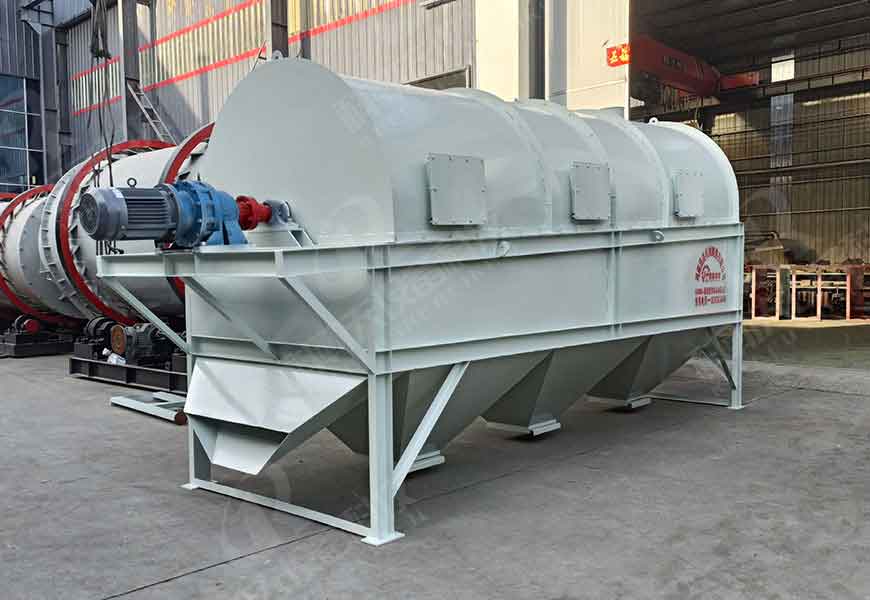

rotary drum screen for the classification of powder materials, screening effect is good, 60-200 mesh screen. It is mainly composed of motor, reducer, roller device, frame, sealing cover and inlet and outlet. Mesh is not easy to plug, screening cylinder can be closed, easy to close dust collection, long service life.

rotary drum screen

Product Features

01

Occupy small space

In improving production efficiency at the same time, our company's R & D personnel are committed to reducing the volume of the drum screen, reduce the footprint, but also can bring greater benefits.

02

Low noise, less dust pollution

Reduce noise, dust and other pollution.

03

Smooth operation, high screening efficiency, large output

The reasonable structure design of the base improves the instability of the machine in the running process, improves the efficiency of screening and has a greater output.

04

Good screening effect

Drum screen installation Angle is small, not easy to plug. Mainly used for the classification of powder materials, in the process of operation, screening effect is good, high production efficiency.

Working Principle

The drum device is installed on the frame at an Angle, and the motor is connected with the drum device through a coupling through the reducer, driving the drum device to rotate around its axis. When the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen is turned over and rolled, so that the qualified material (under the screen product) is discharged through the bottom of the drum at the back end of the discharge port, unqualified material (on the screen product) is discharged through the discharge port at the tail of the drum. Due to the material in the roller turning, rolling, so that the material stuck in the sieve can be ejected, prevent the sieve plugging.
Working Principle Img

Technical Parameter

Model Capacity (t/h) Power (kw) Sieve diameter (mm) Length of sieve barrel (mm)

Feed size

(mm)

Under screen size

(mm)

                    Overall dimension                         ( length× width× height ) mm

GTS1015 50 3 1000 1500 ≤300 0~100 2600×1400×1700
GTS1020 100 4 1000 2000 3390×1400×2140
GTS1225 160 5.5 1200 2500 4146×1600×2680
GTS1530 250 7.5 1500 3000 4460×1900×2820
GTS1545 350 11 1500 4500 ≤400 5960×1900×3080
GTS1848 450 15 1800 4800 6500×2350×4000
GTS2055 600 22 2000 5500 7500×2550×4800
GTS2265 800 30 2200 6500 8500×2750×5000
