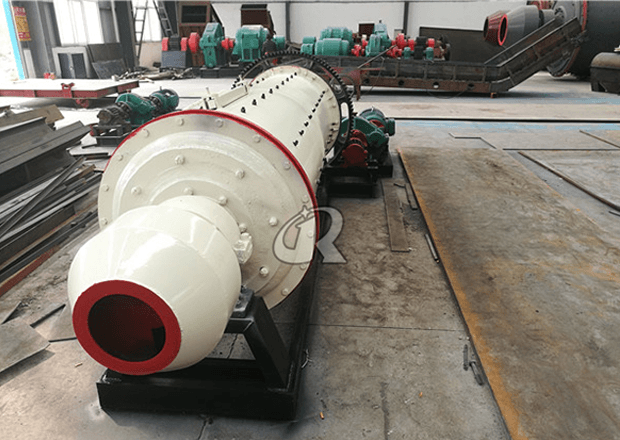

Dry type ball mill is to grind feldspar, glass, dolomite, quartz, silica sand etc. Using ceramic lining plate, the raw material could keep high purity. It also could be get very fine powder such as 1500 mesh together with air classifier machine.
There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.

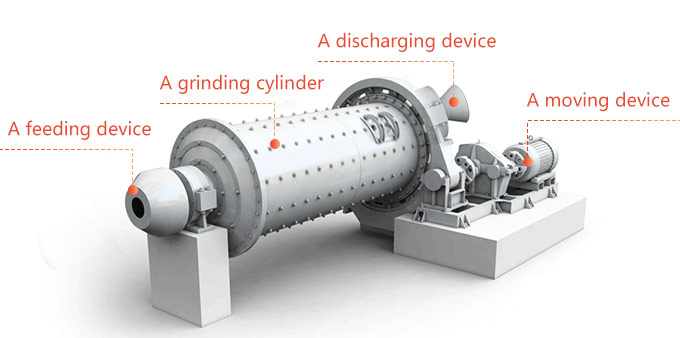

Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.
Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.
The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.
| Model | shell rotation speed (r/min) | Ball load (t) | Feeding size(mm) | Discharging size(mm) | Capacity (t/h) | Power (KW) | Weight (T) |
| 900×1800 | 38 | 1.5 | ≤15 | 0.075 -0.89 | 0.65 -2 | 18.5 | 3.6 |
| 900×2100 | 38 | 1.3-1.4 | ≤20 | 0.075 -0.83 | 0.7-3.5 | 18.5 | 3.9 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075 -0.89 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 32 | 3.8 | ≤25 | 0.0745-0.6 | 1.5-4.8 | 30 | 11.5 |
| 1200×2800 | 32 | 3.3-3.5 | ≤25 | 0.0745-0.6 | 2-6 | 30 | 12.8 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13 |
| 1200×4500 | 32 | 7 | ≤25 | 0.074 -0.4 | 1.6-5.8 | 45 | 13.8 |
| 1500×3000 | 27 | 8 | ≤25 | 0.074 -0.4 | 2-5 | 75 | 17 |
| 1500 ×3500 | 27 | 6.75-6.4 | ≤25 | 0.075 -0.4 | 3-7 | 75 | 17.5 |
| 1500×4500 | 27 | 14 | ≤25 | 0.074 -0.4 | 3.5-12 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.074 -0.4 | 3.5-8 | 115 | 24.7 |
| 1830×3000 | 24 | 18 | ≤25 | 0.074 -0.4 | 4-10 | 130 | 28 |
| 1800×3600 | 24 | 10.6-11.35 | ≤25 | 0.075 -0.4 | 5-22 | 130 | 30 |
| 1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074~0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24 | 25 | ≤25 | 0.074 -0.4 | 7.5-17 | 210 | 36 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 39 |
| 2100×3600 | 22 | 14-15.2 | ≤25 | 0.075 -0.4 | 15-36 | 370 | 42 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 43.8 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 45.5 |
| 2200×5500 | 21 | 30 | ≤25 | 0.074 -0.4 | 10-20 | 210 | 48.5 |
| 2200×6500 | 21 | 31 | ≤25 | 0.074 -0.4 | 14-26 | 380 | 52.8 |
| 2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21 | 33 | ≤25 | 0.074 -0.4 | 16-29 | 380 | 56 |
| 2400×3000 | 20.6 | 15.5-16.6 | ≤25 | 0.075 -0.4 | 22-24 | 245 | 59 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074 -0.4 | 8.5-60 | 380 | 65 |
| 2700×3600 | 20.6 | 39 | ≤25 | 0.074 -0.4 | 12-70 | 400 | 91.3 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074 -0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074 -0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.075-0.4 | 30-90 | 800 | 137 |
