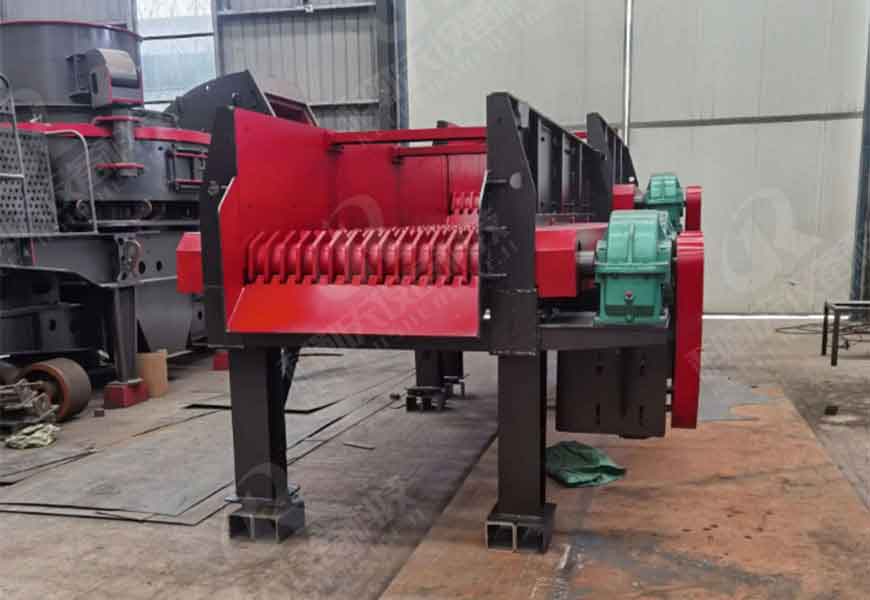

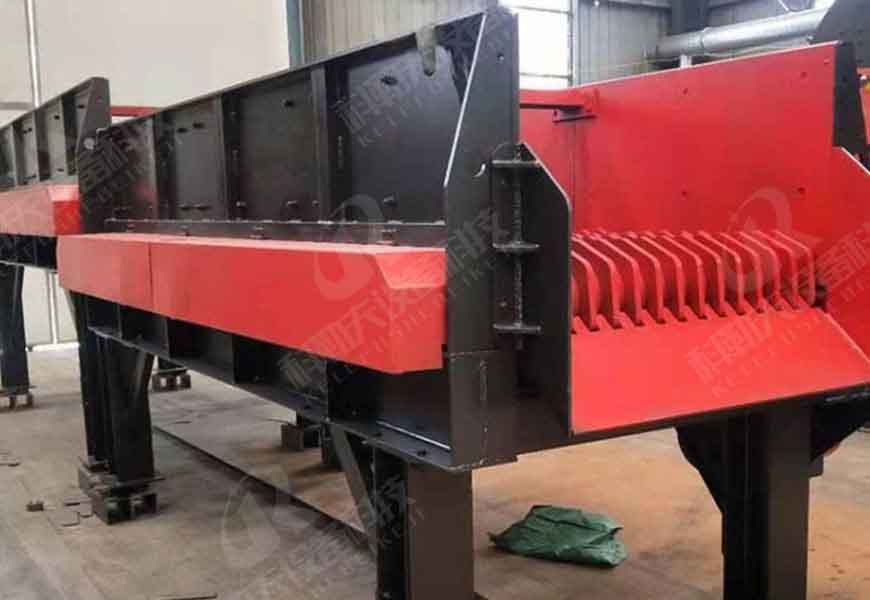

Mud and stone separator

  • Capacity: 60-1000t/h
  • Feed size: ≤300mm
  • Applicable materials: Mud and stone separation, soil and stone separation, sand and stone separation, large and small stone separation, coal and gangue separation, construction waste separation, etc.
Online Chat

Applicable Material

High screening efficiency, low noise, small dust, long service life

Mud and stone separator is mainly composed of box, box liner, disc, drive shaft, speed regulating motor, motor pedestal, chain sprocket, bracket and so on. The emergence of mud and stone separator has rapid separation and no need for water, which has a key effect in the processing and manufacturing of sand production line, stone production line and other processing technologies.

Mud and stone separator

Product Features

01

Screening efficiency

Because the equipment is equipped with a plate screen mechanism, in the screening process, no matter how sticky, wet and miscellaneous the material entering the separation screen, the screen will never be blocked by the relative motion of the screen machine and the screen body, thus improving the screening efficiency of the equipment.

02

Good working environment

The whole screening mechanism is designed in the sealed dust cover, which eliminates the dust flying in the screening process and improves the working environment.

03

Low noise of equipment

During the operation of the equipment, the noise generated by the material and rotating screen is completely isolated by the sealed dust cover, so that the noise cannot be transferred to the outside of the equipment, thus reducing the noise of the equipment.

04

Long service life

Strong power, smooth operation, high wear resistance, long service life.

Working Principle

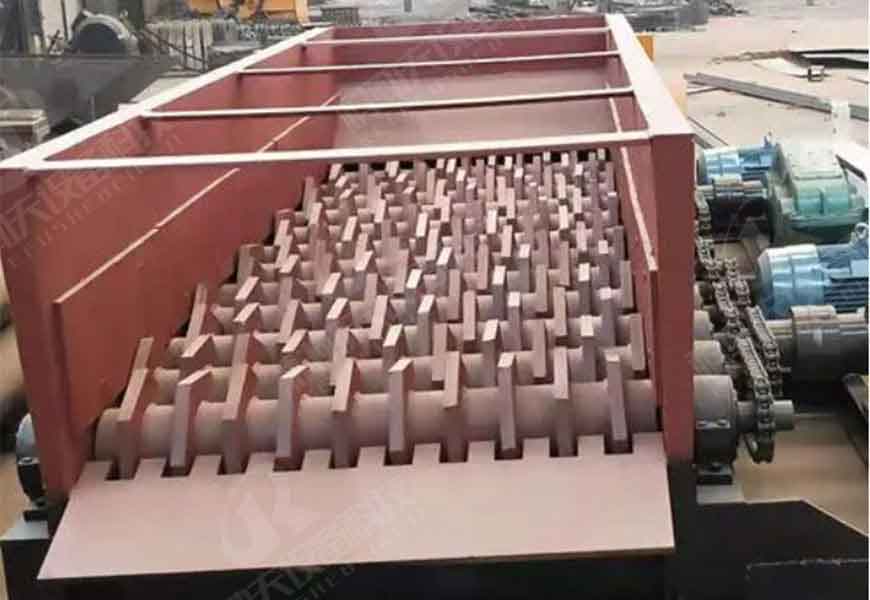

The material enters the 1-2 shaft of the mud and stone separator from the top, and then the motor drives the screen shaft with the irregular shape device for turning motion. There is a gap between the shafts, and the large particle size material moves forward by the irregular device embedded in the shaft. The small particle size material gradually falls to the bottom of the machine and is discharged by the belt conveyor, so as to achieve the purpose of separating the coarse and fine materials.
Working Principle Img

Technical Parameter

model Width of tank(mm) Tank length  (mm) Feed size    (mm) motor power    (kw) handling capacity    (t/h)
NSFL-104010004000≤3504×7.5150-200
NSFL-106010006000≤3505×7.5150-200
NSFL-124012004000≤4004×11200-300
NSFL-126012006000≤4005×11200-300
NSFL-144014004000≤5004×15300-450
NSFL-146014006000≤5004×15300-450
NSFL-164016004000≤5004×15500-700
NSFL-166016006000≤5004×18.5500-700
