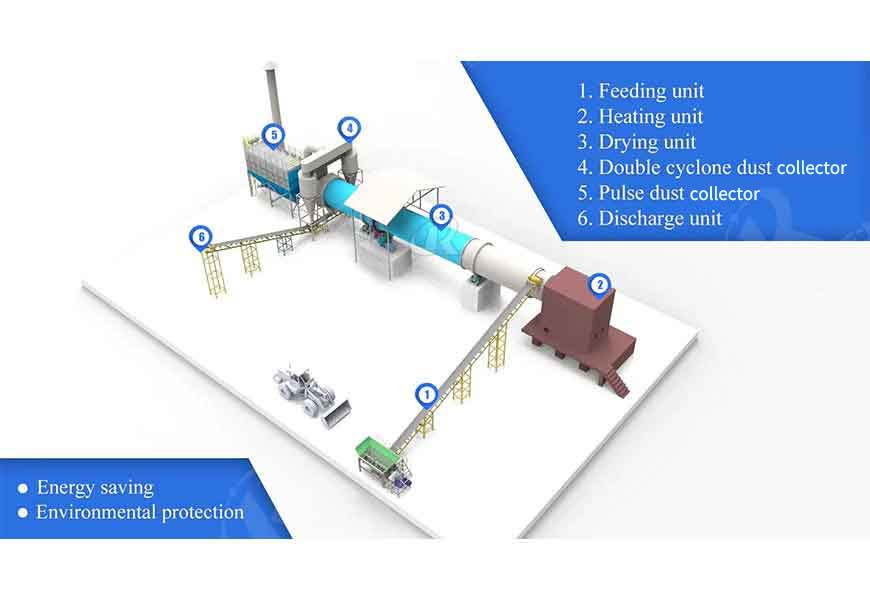

In view of the ore slime with high moisture, high viscosity, high water holding capacity and many other adverse drying conditions, Henan Kolev Machinery new generation ore slime drying complete system using new feeding, discharging device, prevent to the roller dryer feeding clogging, discontinuous, uneven and material return phenomenon, reduce the dust removal system load.

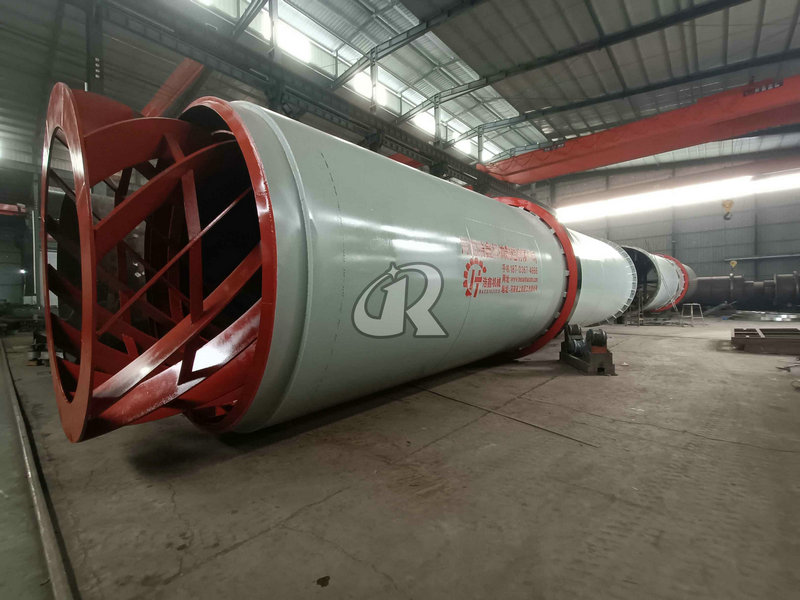

The dryer barrel is made of wear-resistant manganese plate, which has the characteristics of high hardness and high toughness; and its wear resistance is higher than other materials.

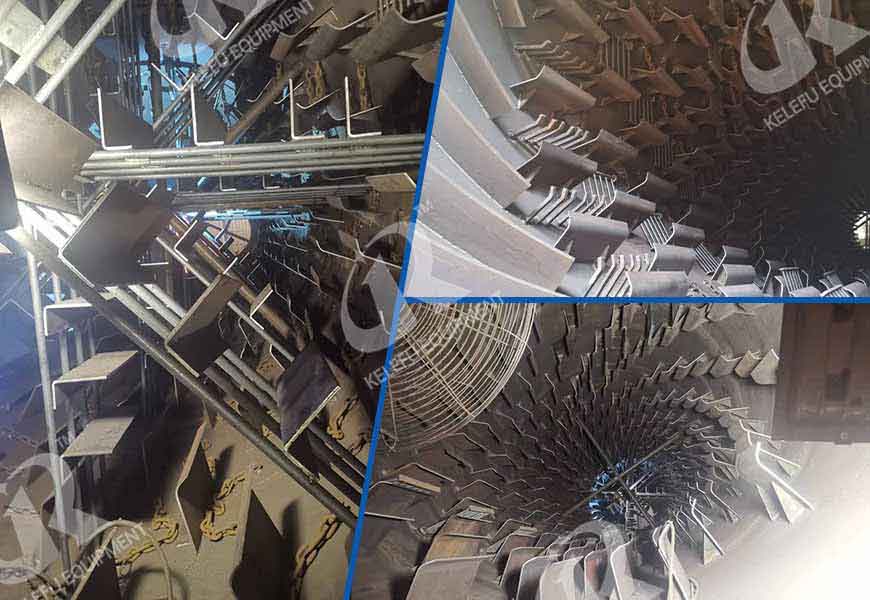

The combination of the spiral guide plate and the new lifting plate increases the fluidity and heat conduction of the material, allowing the material to enter the drying barrel and form a material curtain, which is more adaptable to the moisture and viscosity of the material.
Enhanced dust removal device, a variety of heat sources to meet the environmental requirements of different areas.
Adopting a new transmission system and upgraded reducer, it has strong power and more stable operation.Excellent structure, simple, stable operation, high degree of mechanization, large production capacity, continuous operation.
| product standard（m) | Capacity（t/h) | Feed moisture（%） | Final Moisture(%) | Reducer number | Mounting inclination（°） | Power(KW) |
|---|---|---|---|---|---|---|
| 0.8*8 | 0.5-3 | 30% | 15%-1% | ZQ250 | 1.5-3 | 3kw |
| 1*10 | 1—5 | 30% | 15%-1% | ZQ250 | 1.5-3 | 5.5KW |
| 1.2*12 | 2_8 | 30% | 15%-1% | ZQ350 | 1.5-3 | 11KW |
| 1.6*16 | 6_10 | 30% | 15%-1% | ZQ400 | 1.5-3 | 15KW |
| 1.8*16 | 8—15 | 30% | 15%-1% | ZQ400 | 1.5-3 | 18.5kw |
| 2*18 | 10—20 | 30% | 15%-1% | ZQ500 | 1.5-3 | 22kw |
| 2.2*18 | 12—25 | 30% | 15%-1% | ZQ650 | 1.5-3 | 30kw |
| 2.4*22 | 15—30 | 30% | 15%-1% | ZQ650 | 1.5-3 | 45kw |
| 2.6*24 | 18—35 | 30% | 15%-1% | ZQ850 | 1.5-3 | 55kw |
| 2.8*26 | 20—40 | 30% | 15%-1% | ZQ850 | 1.5-3 | 75kw |
| 3*28 | 25—50 | 30% | 15%-1% | ZQ850 | 1.5-3 | 90kw |
| 3.2*28 | 30-60 | 30% | 15%-1% | ZSY315 | 1.5-3 | 110kw |
| 3.4*30 | 35-70 | 30% | 15%-1% | ZSY355 | 1.5-3 | 132kw |
| 3.6*32 | 40-80 | 30% | 15%-1% | ZSY400 | 1.5-3 | 160kw |
| 3.8*32 | 50-100 | 30% | 15%-1% | ZSY450 | 1.5-3 | 185kw |
