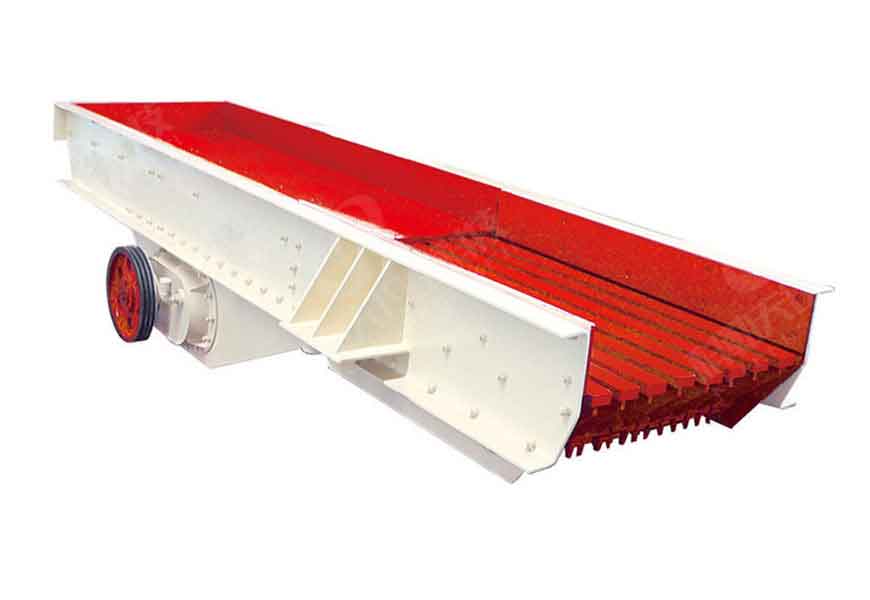

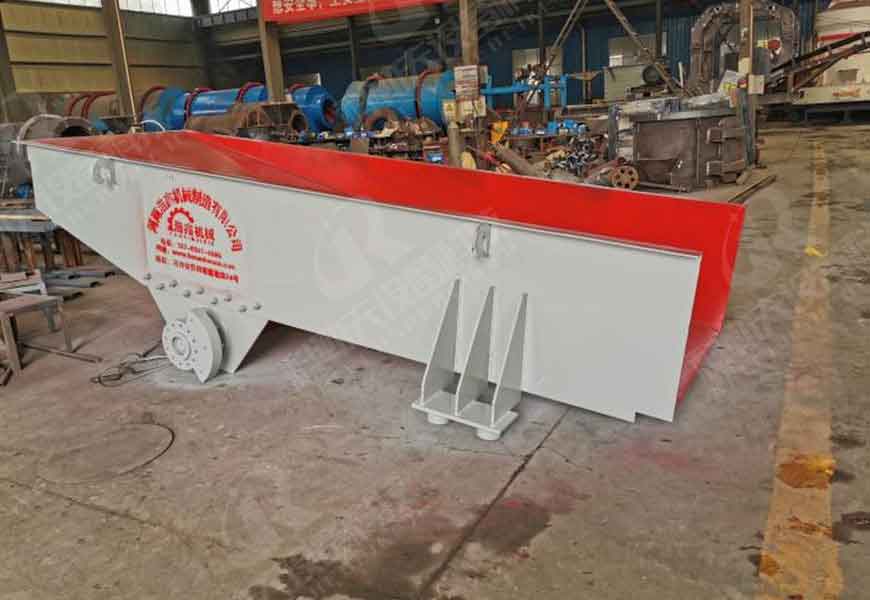

Vibrating feeder

  • Capacity: 80-1000t/h
  • Feed size: ≤800mm
  • Motor power: 1.1×2-37kw
  • Applicable materials: River pebble, granite, basalt, iron ore, limestone, quartzite, diabase, iron ore, gold, copper and so on
Online Chat

Applicable Material

Clear screening, high screening efficiency, not easy to plug, uniform feeding

Vibrating feeder has the advantages of reasonable structure, strong vibrating force, small vibrating noise, durable, easy maintenance, safety, etc., widely used in mining, building materials, transportation, energy, chemical industry product classification,it is the ideal equipment in the crushing screen equipments, When installing a small aperture screen, it is necessary to add water and spray in order to screen moist viscous materials..

Vibrating feeder

Product Features

01

Flexible regulation

Vibrating feeder in operation can change and control the flow by adjusting the exciting force, more convenient and flexible.

02

Low energy consumption

The vibrating power of the vibrating feeder is the motor, small power consumption, No material blockage.

03

Less pollution

Vibration feeder using sealed body can effectively prevent dust pollution.

04

Continuous operation

Strong feeding capacity, high efficiency, to ensure the continuous and stable operation of the equipment.

Working Principle

When the vibration feeder is working, the electric motor drives the eccentric block of the exciter to rotate at high speed through a triangular belt. The eccentric block generated by the operation generates a large centrifugal force, which excites the screen box to generate a certain amplitude of circular motion. The material on the screen is subjected to continuous throwing motion on the inclined screen surface due to the impulse transmitted by the screen box. During the process of the material meeting the screen surface, particles smaller than the screen hole are allowed to pass through the screen, thus achieving classification.
Working Principle Img

Technical Parameter

modelMaximum feed size (mm) Capacity (t/h) power of motor (kw) Mounting Angle (°) Tank size (mm) Dimension ( length× width× height)(mm)
GZD-650×230030080-1002×1.110-20650×23002300×1360×780
GZD-750×2500350100-1302×1.110-20750×25002500×1460×780
GZD-850×3000400120-1502×310-20850×30003110×1800×1600
GZD-1000×3600500150-2002×3.710-201000×36003850×1950×1630
GZD-1100×3600580240-3002×3.710-201100×36003600×2050×1660
GZD-1300×3600650450-6002×7.510-201300×36003900×2350×1750
GZD-1500×36001050450-10002×7.510-201500×36003900×2000×1750
GZD-2000×36001200550-10002×1010-202000×36003600×2000×1750
GZD-2500×50001500650-15002×1810-202500×50005000×2500×1800
ZSW-380×95500100-2808p 110-153800×2803920×1640×1320
ZSW-490×110630150-4006p 150-104900×11004980×1830×1320
ZSW-490×130750400-7006p 220-104900×13004980×2580×2083
ZSW-600×130750400-7004p 220-106000×13006082×2580×2083
ZSW-600×150800500-9004p 300-106000×15006086×2662×1912
ZSW-600×180900700-13004p 370-106000×18006310×3262×2230
ZSW-600×2001200800-15004p 550-106000×20006310×3462×2230
