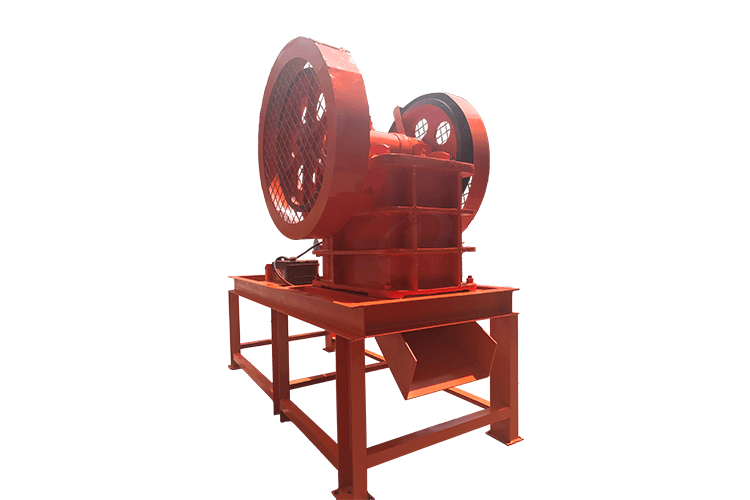

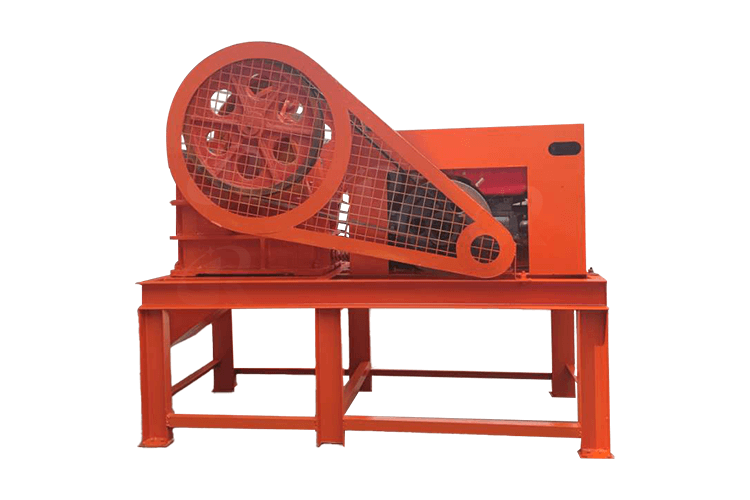

Small rock crusher is a kind of main rock crushing equipment, with screening system, integrated small mobile crushing station, using diesel engine to generate electricity, suitable for areas without electricity, low cost, easy to operate, and free to move;widely used in various industries, such as mining, road and railway construction, building construction, water conservation, the chemical industry, etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore, etc.
Simple and reliable structure,low operation costs
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Engine (hp) | Overall Dimension (mm) |
| PE150x250 | 150x250 | 130 | 10-45 | 1-4 | 12 | 896x745x935 |
| PE200x300 | 200x300 | 180 | 15-50 | 2-6 | 15 | 910x750x990 |
| PE200x350 | 200x350 | 180 | 18-70 | 3-10 | 18 | 1000x870x990 |
| PE250x400 | 250x400 | 210 | 25-60 | 5-20 | 25 | 1300X1090X1270 |
| PE400X600 | 400X600 | 340 | 40-100 | 16-64 | 40 | 1730X1730X1630 |
