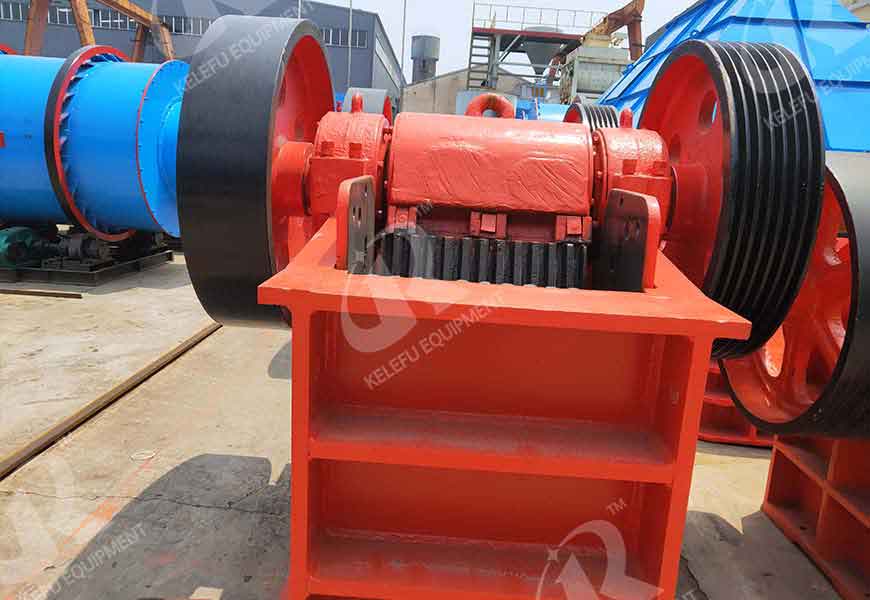

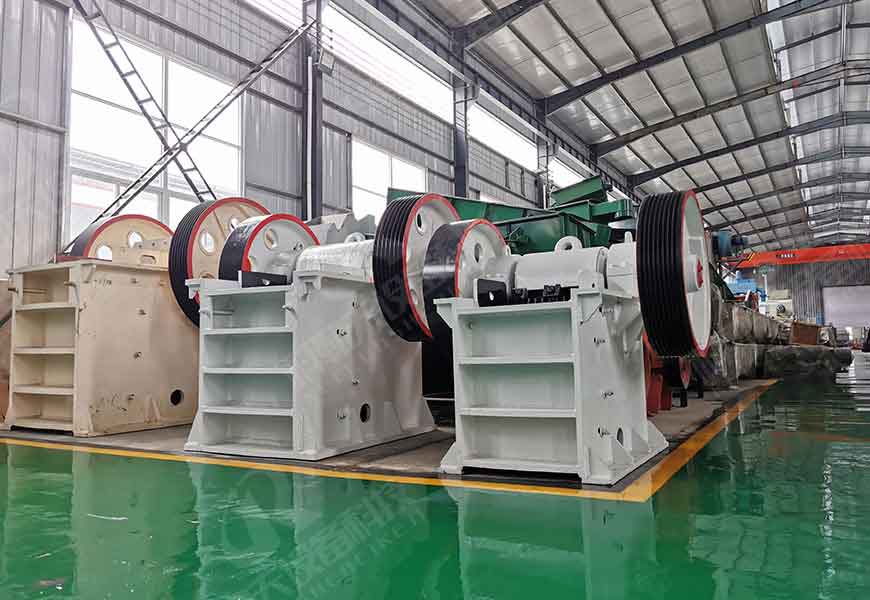

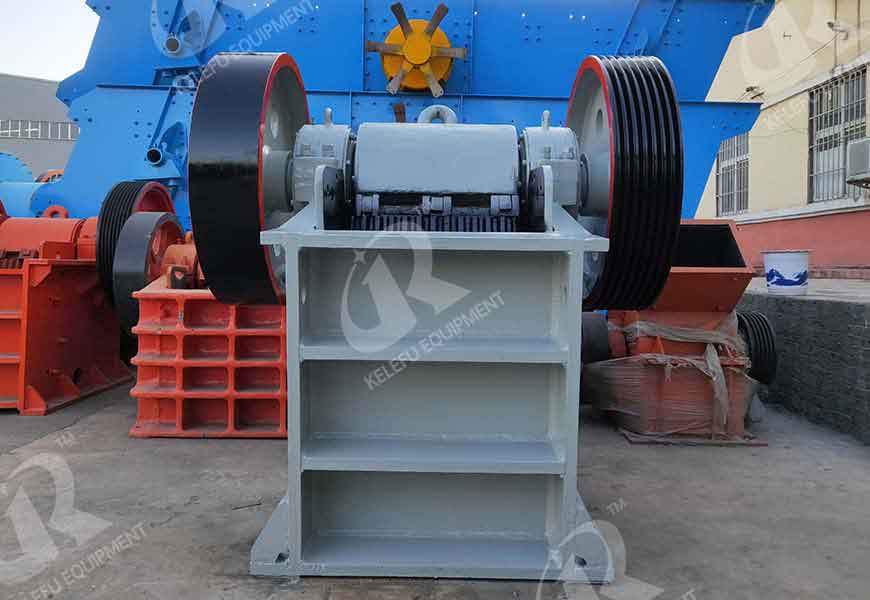

Jaw crusher is suitable for metallurgy, mining, construction and railway departments,as a variety of ores or rocks with compressive strength below 250MPa for primary crushing and medium crushing, has the characteristics of large crushing ratio, uniform particle size of finished products, low power consumption, simple structure, reliable work, easy repairs, low operating costs, easy maintenance and so on.

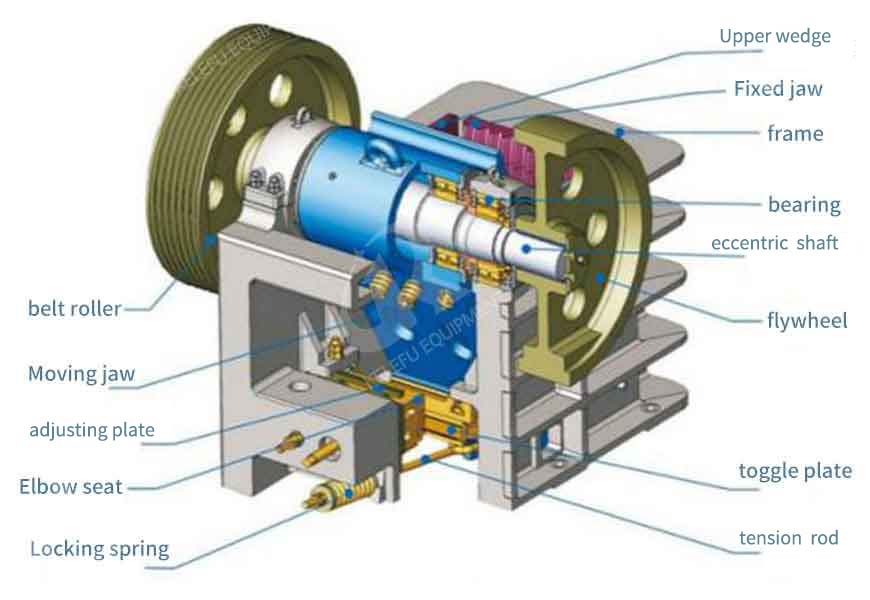

The structure of the front plate is optimized, so that the crushing chamber is deepened and there is no dead zone, the material is broken more times, the stroke of the moving jaw is increased, the material is discharged smoothly, and the crushing capacity is also improved.
Gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment.
It is made of high strength manganese steel and cast in one molding. It has the characteristics of wear resistance, compression resistance and long service life.
Simple structure, reliable operation, low operating costs, safe and reliable lubrication system, easy parts replacement.
| Model | Feed opening size (mm) | Max feed size(mm) | Discharge opening adjustment range | Capacity (t/h) | Power (kw) |
| PE150×250 | 150×250 | 125 | 10-40 | 1-5 | 5.5 |
| PE250×450 | 250×450 | 210 | 20-60 | PE250×750 | 250×750 |
| PE250×1000 | 250×1000 | 210 | 25-60 | 15-52 | 30 |
| PE250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 |
| PE300×1300 | 300×1300 | 260 | 30-90 | 30-870 | 55 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-65 | 30 |
| PE500×750 | 500×750 | 425 | 50-100 | 50-100 | 55 |
| PE600×900 | 600×900 | 500 | 65-160 | 50-120 | 55-75 |
| PE750×1060 | 750×1060 | 630 | 80-18 | 52-180 | 110-132 |
| PE800×1060 | 800×1060 | 640 | 100-200 | 136-230 | 110-132 |
| PE900×1200 | 900×1200 | 750 | 100-210 | 150-320 | 110-132 |
| PE1000×1200 | 1000×1200 | 850 | 195-265 | 280-360 | 110-132 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 160-180 |
