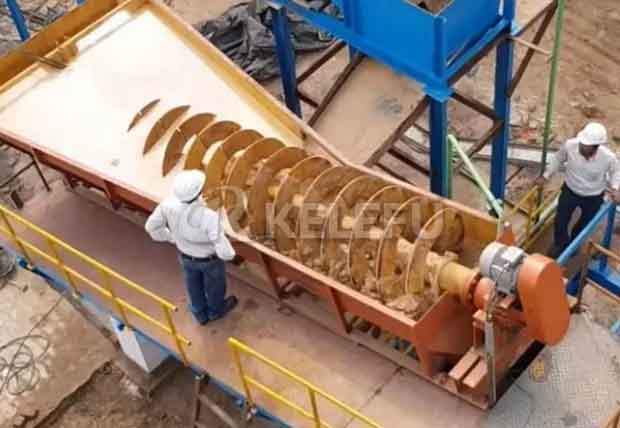

Spiral sand washing machine

  • Capacity: 20-240t/h
  • Applicable materials: Quartzite, gold ore, iron ore, copper ore, ore, pulp, fine mud, cement clinker, pyrrhotite, etc
Online Chat

Applicable Material

Widely used, advanced technology

The spiral sand washing machine produced by our company is a kind of spiral washing equipment, which can clean and separate the stone powder soil in the sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It is a kind of sand washing equipment used with the sand making machine.

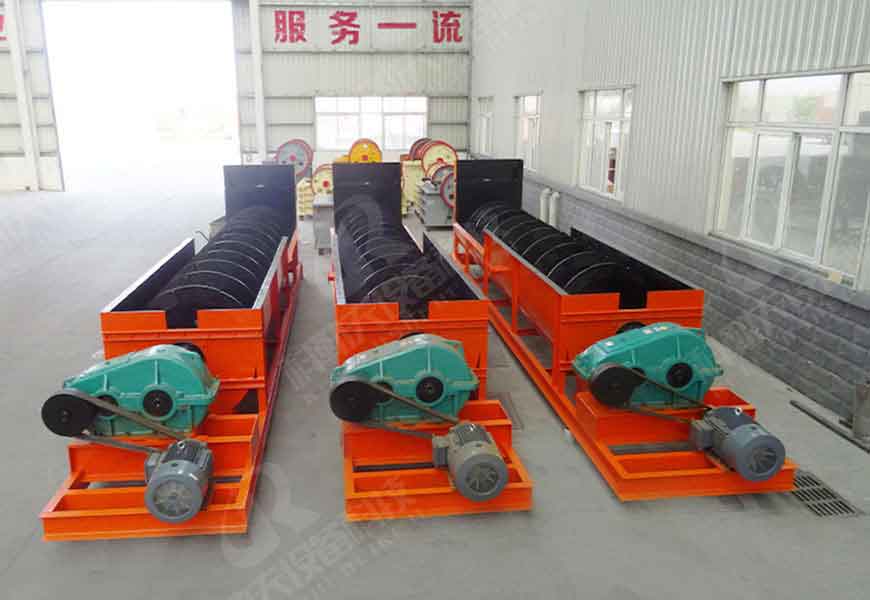

Spiral sand washing machine

Product Features

01

Superior performance, good sealing

Large processing capacity, high cleaning rate, small power consumption, good sealing structure, fully closed transmission device, adjustable weir plate.

02

Wear-resistant and durable, stable operation

Product efficiency is high, durable, cleaning, dewatering effect is good, fine grain products to maintain stability.

03

Less loss, good sand washing effect

There is less sand loss in the sand washing process, especially the transmission part of the spiral sand washing machine is isolated from water and sand.

04

Low failure rate

The failure rate is much lower than that of the current commonly used sand washing machine, which is the choice for upgrading the domestic sand washing industry.

Working Principle

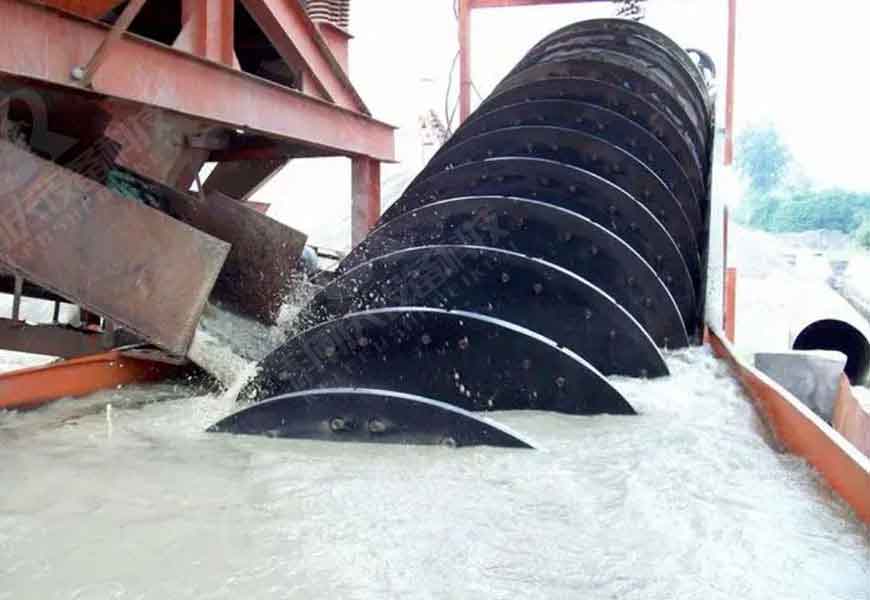

When the spiral sand washing machine is working, the motor drives the impeller to slowly rotate through a triangular belt, reducer, and gear, and the sand and gravel enter the washing groove through a feeding groove. Driven by the impeller, they roll and grind each other to remove impurities that cover the surface of the sand and gravel, while also damaging the water vapor layer that covers the sand particles, in order to facilitate dewatering; At the same time, add water to form a strong water flow, timely remove impurities and small specific gravity foreign objects, and discharge them from the overflow outlet washing tank to complete the cleaning function. Clean sand and gravel are taken away by the blades, and then poured into the discharge groove from the rotating impeller to complete the cleaning effect of the sand and gravel.
Working Principle Img

Technical Parameter

Spiral sand washing machine equipment product technical parameters
Specification SpecificationHY0760HY1060HY1272HY1572
Screw diameter(mm)7501000120015001500
Screw length(mm)60006000750075007500
Spiral speed(r/min)1818161616
Capacity(t/h)5-2010-3030-5050-8080-100
Motor power(kw)7.511152230
Overall
        dimension
Length(m)7.87.89.39.39.6
Width(m)0.81.251.441.851.85
Height(m)1.52.22.42.82.8
