Sand Dryer

  • Capacity: 5-80t/h
  • Output moisture: Adjustable silica
  • Applicable materials: sand,Yellow sand, river sand, fly ash, slag, clay, wood chips and other granular, good flow, non-viscous materials.
Online Chat

Applicable Material

sand dryer machine Introduction

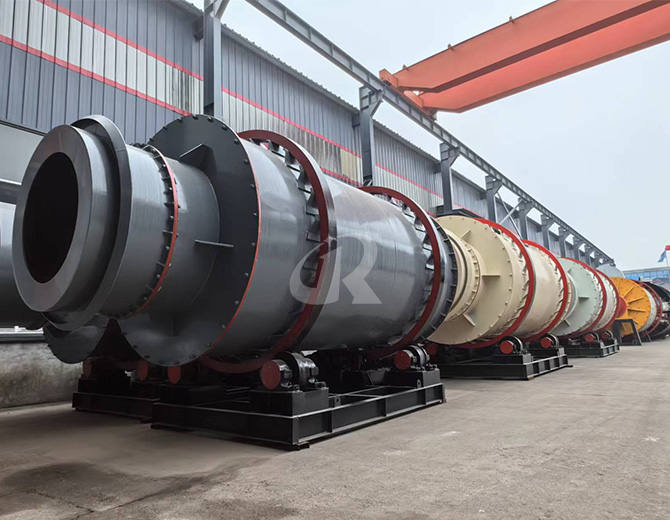

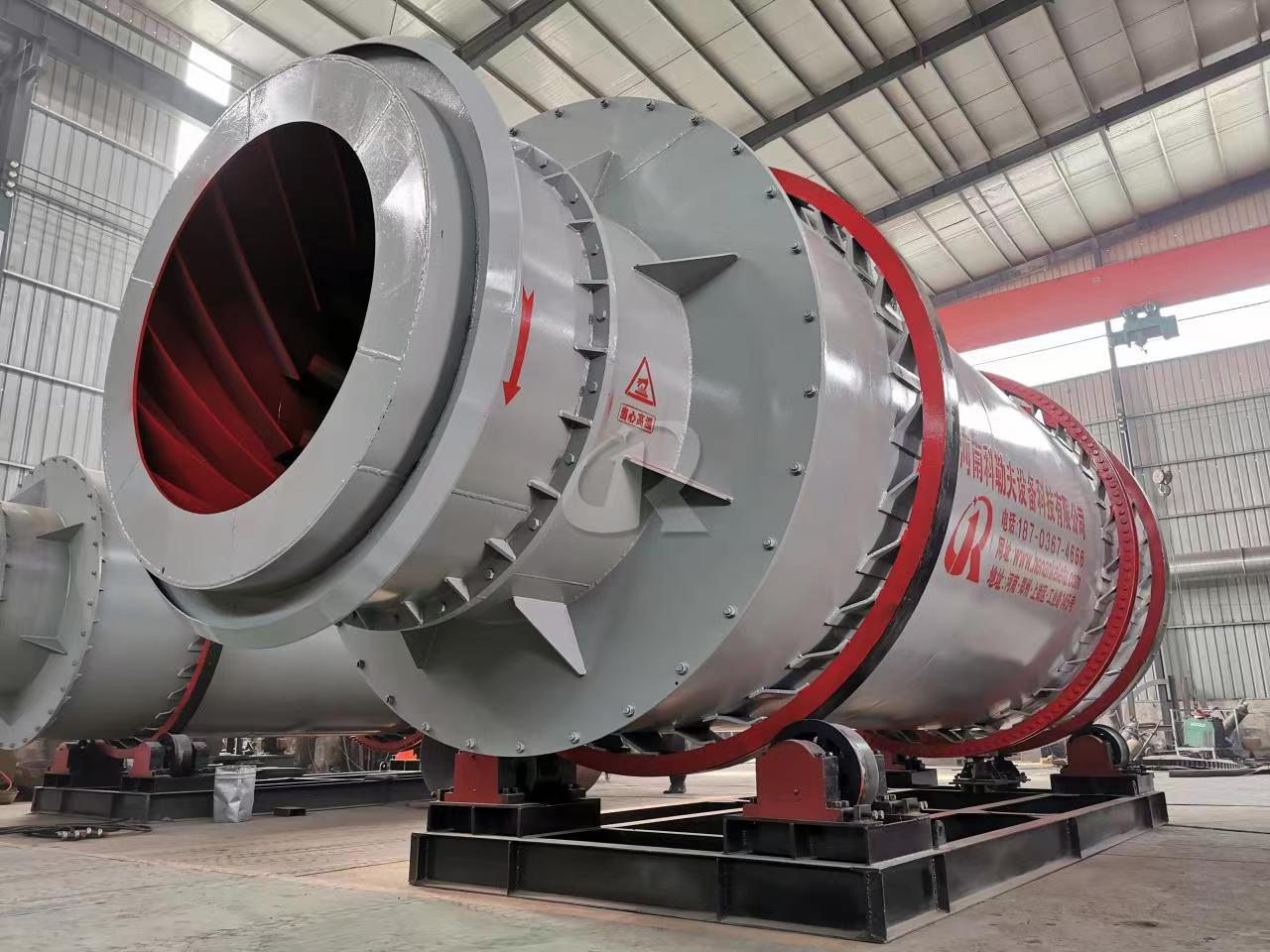

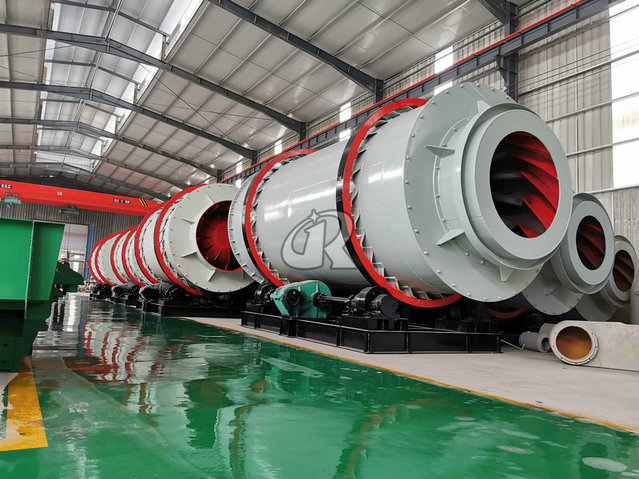

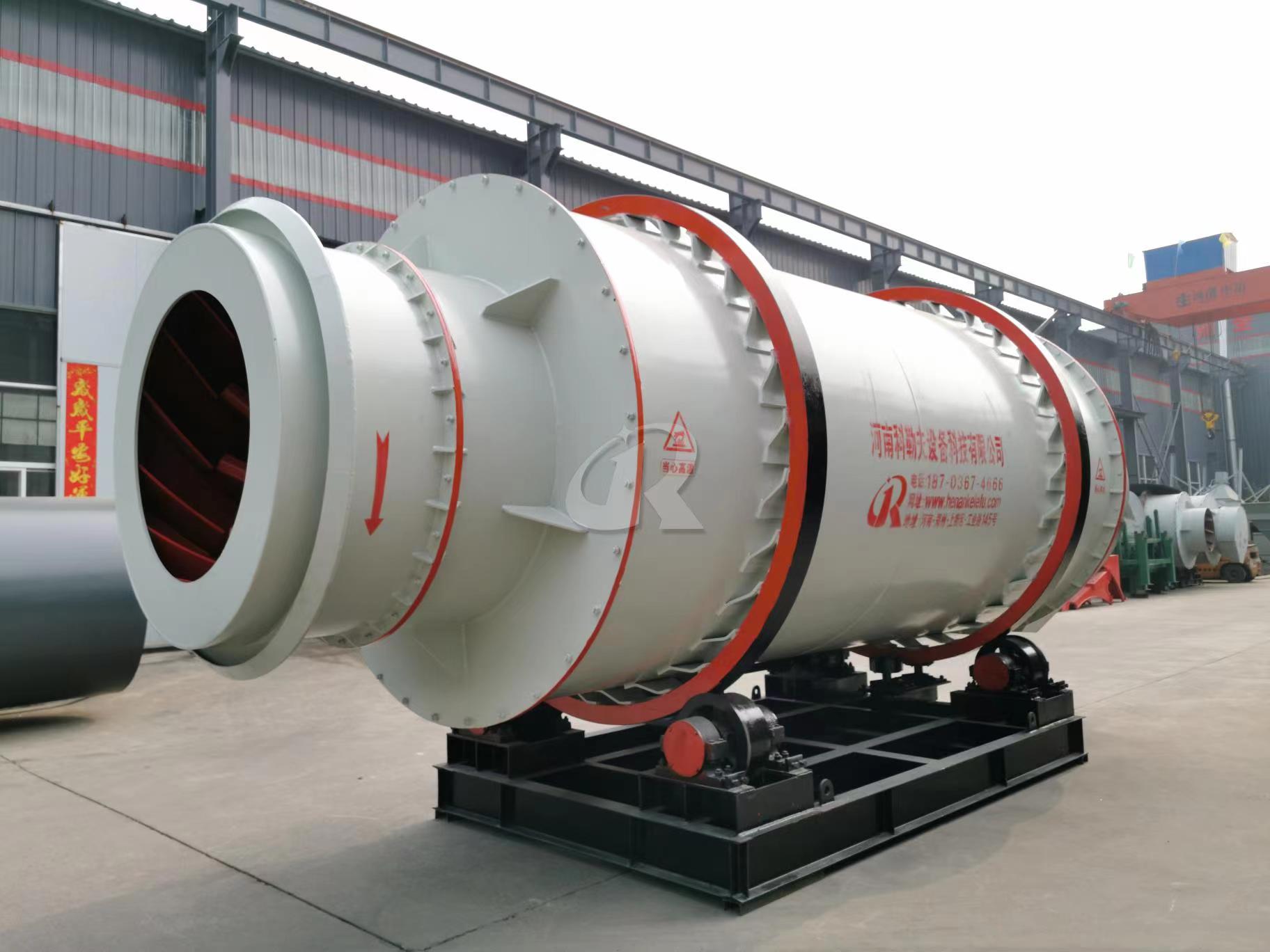

Sand dryer is also known as the three layers of drum dryer, three return cylinder dryer, on the basis of the single-cylinder dryer, developed and manufactured, which is an industrial dryer on Granular material. with mature technology, through the drying of the sand, fly ash, coal, mineral materials, slag, and other material, the effect is very good.

Product Features

01

High quality plate, wear resistant and durable

It is made of wear-resistant manganese plate, and the new alloy lifting plate device is used inside, which is wear-resistant and durable and has a long service life.

02

Upgraded version structure, high thermal efficiency

The angle of the new lifting plate device is seriously designed according to the characteristics of the material, which can increase the heating area of the material, sand drying plant thermal efficiency is as high as 80%, at the same time, the total power is low, 40% energy saving..

03

Small footprint, low cost

Three tube overlapping, small area, reduce investment in civil construction.The sand dryer covers an area of about 40% lower than single drum dryer and civil investment reduced by about 50%.

04

Strong power, smooth operation

Adopt new transmission system, upgrade version reducer, strong power, more stable operation.

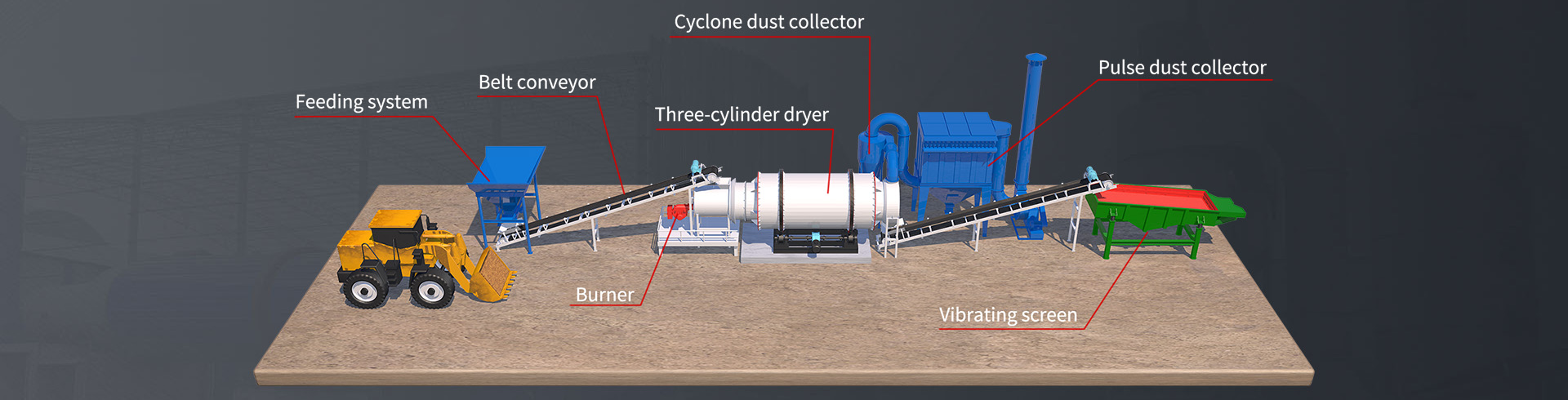

Working Principle

The sand are conveyed to silo by belt conveyor or bucket elevator ,and transport to the feed end by the feeder of silo . The heat generated by the combustion of fuel in the hot blast stove enters the main engine under the action of the extraction fan to touch with the materia. The sand is evenly dispersed and fully contacted with the hot air under the turning of the uniformly lifting plate in the drying drum. Speed up the material drying heat transfer, mass transfer, evaporation of water. The dried material is discharged through the discharge hopper and transported to the designated place for storage.The heat carrier is hot air,the flue gas etc.After the dryer process,It need cyclone dust collector to catch the items in the airflow.You should bag type or wet-type dust collector and afterward discharge the waste gas,if you intend to further reduce the dust load of the exhaust . .
Working Principle Img

Technical Parameter

Specifications and Models Handling Capacity Drying Sand(t/h) Finished Product Moisture(%) Power(KW)
KLF-TH1216 1-3 <2±1 4
KLF-TH1630 3-5 <2±1 4
KLF-TH2240 8-10 <2±1 4
KLF-TH2460 10-15 <2±1 7.5
KLF-TH2660 15-20 <2±1 15
KLF-TH2870 25-30 <2±1 18.5
KLF-TH3080 30-40 <2±1 22
KLF-TH3290 40-50 <2±1 45
KLF-TH3390 50-60 <2±1 55
KLF-TH3610 70-80 <2±1 75
The above parameters are for reference only. For more details, please contact customer service
